BTS4141N Datasheet - Infineon Technologies AG

Smart High-Side Power Switch

BTS4141N Features

* Short circuit protection

* Current limitation

* Overload protection Product Summary Overvoltage protection Operating voltage Vbb(AZ) Vbb(on) RON SOT-223 4 47 200 V mΩ 1245 V On-state resistance

* Overvoltage protection (including load dump)

* Undervoltag

BTS4141N General Description

N channel vertical power FET with charge pump, ground referenced CMOS compatible input, monolithically integrated in Smart SIPMOS technology. Providing embedded protective functions. Page 1 2004-01-27 BTS 4141N Block Diagram + Vbb Voltage source V Logic Voltage sensor R in 4 Overvoltage prot.

BTS4141N Datasheet (458.39 KB)

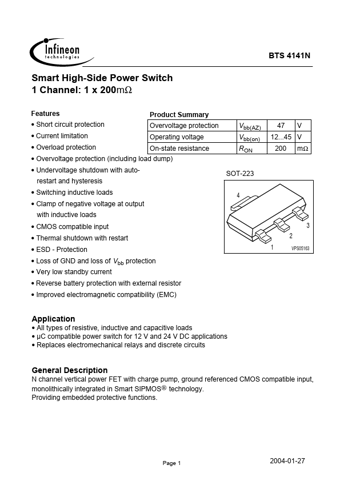

BTS4141N Datasheet Preview — Preview of BTS4141N PDF

Datasheet Details

Part number:

BTS4141N

Manufacturer:

Infineon ↗ Technologies AG

File Size:

458.39 KB

Description:

Smart high-side power switch.
