PTF180101, LDMOS RF Power Field Effect Transistor 10 W/ 1805-1880 MHz/ 1930-1990 MHz 10 W/ 2110-2170 MHz

PTF180101 LDMOS RF Power Field Effect Transistor 10 W, 1805 *1880 MHz, 1930 *1990 MHz 10 W, 2110 *2170 MHz .
The PTF180101 is a 10 W, internally. matched GOLDMOS FET device intended for EDGE applications in the DCS/PCS band.

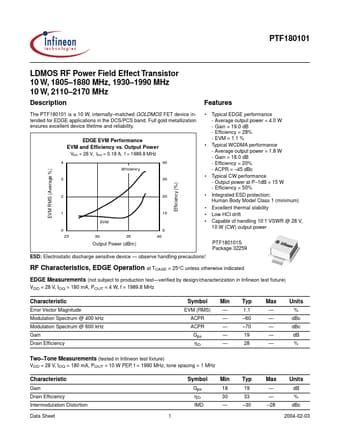

datasheet Preview Page 1 from Datasheet4u.com

PTF180101_InfineonTechnologiesAG.pdf

PTF180101 Datasheet Preview — Preview of PTF180101 PDF

Datasheet Details

Part number:

PTF180101

Manufacturer:

Infineon ↗ Technologies AG

File Size:

310.60 KB

Description:

LDMOS RF Power Field Effect Transistor 10 W/ 1805-1880 MHz/ 1930-1990 MHz 10 W/ 2110-2170 MHz

Features

* Typical EDGE performance - Average output power = 4.0 W - Gain = 19.0 dB - Efficiency = 28% - EVM = 1.1 % Typical WCDMA performance - Average output power = 1.8 W - Gain = 18.0 dB - Efficiency = 20% - ACPR =
* 45 dBc Typical CW performance - Output power at P
* 1dB = 15 W - Ef
