PTF180601C Datasheet, Mhz, Infineon Technologies AG

PTF180601C Features

• Mhz
• Broadband internal matching Typical two-tone performance - Average output power = 30 W - Gain = 16.5 dB - Efficiency = 35% Typical CW performance - Output power at P

PDF File Details

Part number:

PTF180601C

Manufacturer:

Infineon ↗ Technologies AG

File Size:

233.47kb

Download:

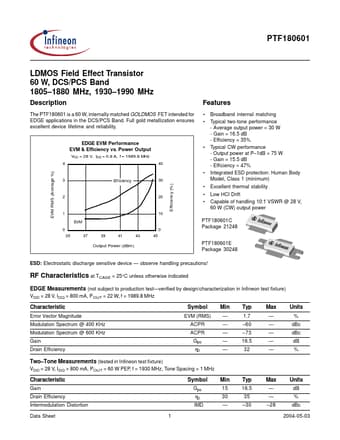

📄 Datasheet

Description:

Ldmos field effect transistor 60 w/ dcs/pcs band 1805-1880 mhz/ 1930-1990 mhz. The PTF180601 is a 60 W, internally matched GOLDMOS FET intended for EDGE applications in the DCS/PCS Band. Full gold metallization e

PTF180601C Application

• Applications in the DCS/PCS Band. Full gold metallization ensures excellent device lifetime and reliability. EDGE EVM Performance EVM & Efficiency v
