PTF210301, LDMOS RF Power Field Effect Transistor 30 W/ 2110-2170 MHz

PTF210301 LDMOS RF Power Field Effect Transistor 30 W, 2110 *2170 MHz .
The PTF210301 is a 30 W, internally matched GOLDMOS FET intended for WCDMA applications from 2110 to 2170 MHz.

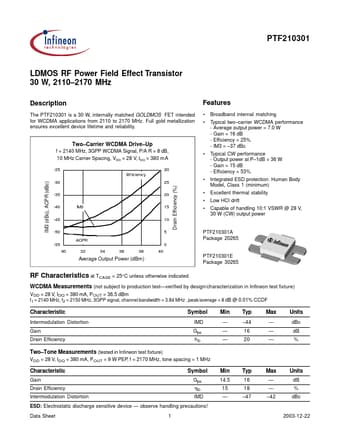

datasheet Preview Page 1 from Datasheet4u.com

PTF210301_InfineonTechnologiesAG.pdf

PTF210301 Datasheet Preview — Preview of PTF210301 PDF

Datasheet Details

Part number:

PTF210301

Manufacturer:

Infineon ↗ Technologies AG

File Size:

337.86 KB

Description:

LDMOS RF Power Field Effect Transistor 30 W/ 2110-2170 MHz

Features

* Broadband internal matching Typical two
* carrier WCDMA performance - Average output power = 7.0 W - Gain = 16 dB - Efficiency = 25% - IM3 =
* 37 dBc Typical CW performance - Output power at P
* 1dB = 36 W - Gain = 15 dB - Efficiency = 53% Integrated ESD protec
