FB20R06W1E3 IGBT

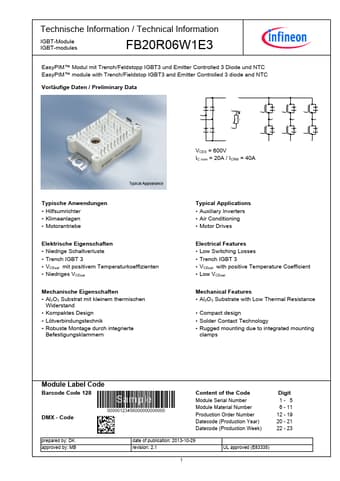

Technische Information / Technical Information IGBT-Module IGBT-modules FB20R06W1E3 EasyPIM™ Modul mit Trench/Feldstopp IGBT3 und Emitter Controlled 3 Diode und NTC EasyPIM™ module with Trench/Fieldstop IGBT3 and Emitter Controlled 3 diode and NTC Vorläufige Daten / Preliminary Data J VCES = 600V IC nom = 20A / ICRM = 40A Typische Anwendungen Hilfsumrichter Klimaanlagen Motorantriebe Elektrische Eigenschaften Niedrige Schaltverluste Trench I.

FB20R06W1E3 Features

* Low Switching Losses

* Trench IGBT 3

* VCEsat with positive Temperature Coefficient

* Low VCEsat Mechanical Features

* Al2O3 Substrate with Low Thermal Resistance

* Compact design

* Solder Contact Technology

* Rugged mounting due to

FB20R06W1E3_InfineonTechnologies.pdf

FB20R06W1E3 Datasheet Preview — Preview of FB20R06W1E3 PDF

Datasheet Details

Part number:

FB20R06W1E3

Manufacturer:

Infineon ↗ Technologies

File Size:

904.70 KB

Description:

Igbt.
