FB2040A Datasheet - NXP

8-bit Futurebus transceiver

FB2040A Features

* 8-bit BTL transceivers

* Separate I/O on TTL A-port

* Inverting

* Drives heavily loaded backplanes with equivalent load impedances down to 10Ω.

* Compatible with IEEE Futurebus+ or proprietary BTL backplanes

* Controlled output ramp and multiple GN

FB2040A General Description

The FB2040A is an 8-bit bidirectional BTL transceiver and is intended to provide the electrical interface to a high performance wired-OR bus. The FB2040A is an inverting transceiver. The B-port drivers are Low-capacitance open collectors with controlled ramp and are designed to sink 100mA. Precision.

FB2040A Datasheet (130.37 KB)

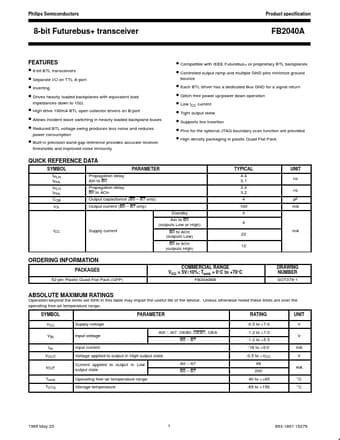

Preview of FB2040A PDF

Datasheet Details

Part number:

FB2040A

Manufacturer:

NXP ↗

File Size:

130.37 KB

Description:

8-bit futurebus transceiver.
