FB2022D 10 BASE-T LOW PASS FILTERS

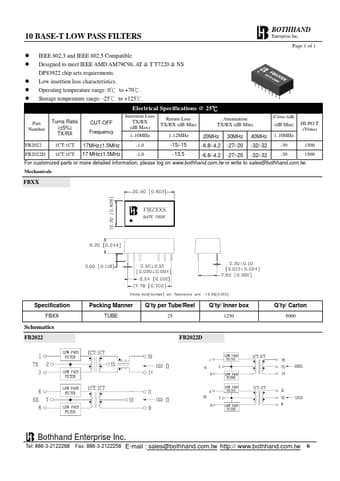

10 BASE-T LOW PASS FILTERS BOTHHAND Enterprise Inc. Page 1 of 1 IEEE 802.3 and IEEE 802.5 Compatible. Designed to meet IEEE AMD AM79C98, AT & T T7220 & NS DP83922 chip sets requirements. Low insertion loss characteristics. Operating temperature range: 0℃ to +70℃. Storage temperature range: -25℃ to +125℃. Part Turns Ratio Number (±5%) TX/RX CUT-OFF Frequency Electrical Specifications @ 25℃ Insertion Loss TX/RX (dB Max) Return Loss TX/RX (dB Min) Attenuation TX/RX (dB Min) 1-10MHz.

FB2022D-BothhandUSA.pdf

FB2022D Datasheet Preview — Preview of FB2022D PDF

Datasheet Details

Part number:

FB2022D

Manufacturer:

Bothhand USA

File Size:

80.52 KB

Description:

10 base-t low pass filters.
