FB2031 - 9-bit latched/registered/pass-thru Futurebus transceiver

The FB2031 is a 9-bit latched/registered transceiver featuring a latched, registered or pass-thru mode in either the A-to-B or B-to-A direction.

The FB2031 is intended to provide the electrical interface to a high performance wired-OR bus.

The TTL-level side (A port) has a common I/O.

The common I/O

FB2031 Features

* Latched, registered or straight through in either A to B or B to A path

* Reduced BTL voltage swing produces less noise and reduces power consumption

* Controlled output ramp and multiple GND pins minimize ground bounce

* Drives heavily loaded backplanes with

FB2031_PhilipsSemiconductors.pdf

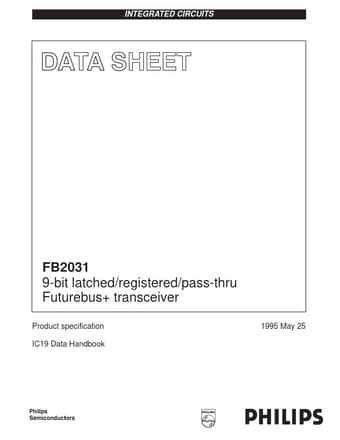

Preview of FB2031 PDF
