FB2033

8-bit latched/registered/pass-thru Futurebus universal interface transceiver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Rochester Electronics LLC SN74FB2033KRC REGISTERED BUS TRANSCEIVER DigiKey 0 21 units
$14.52

FB2033 Datasheet (173.28 KB)

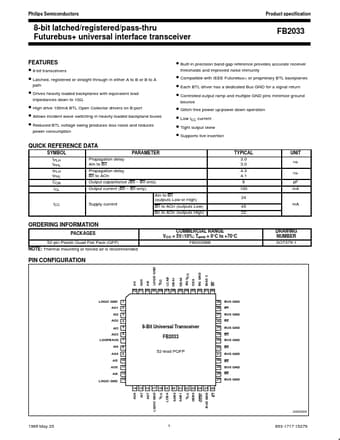

Preview of FB2033 PDF Datasheet

Datasheet Details

Part number:

FB2033

Manufacturer:

NXP ↗

File Size:

173.28 KB

Description:

8-bit latched/registered/pass-thru futurebus universal interface transceiver

FB2033 Features

* 8-bit transceivers

* Latched, registered or straight through in either A to B or B to A path

* Built-in precision band-gap reference provides accurate receiver thresholds and improved noise immunity

* Drives heavily loaded backplanes with equivalent load impedanc

FB2033 General Description

The FB2033 is an 8-bit transceiver featuring a split input (AI) and output (AO) bus on the TTL-level side. The common I/O, open collector B port operates at BTL signal levels. The logic element for data flow in each direction is controlled by two pairs of mode select inputs (SBA0 and SBA1 for B-to-A.
