FB2041 Datasheet - NXP

7-bit Futurebus transceiver

FB2041 Features

* 7-bit BTL transceiver

* Separate I/O on TTL A-port

* Inverting

* Three separate pairs of driver enables in a 1 bit, 3 bit, 3 bit arrangement

* Drives heavily loaded backplanes with equivalent load impedances down to 10Ω.

* High drive 100mA BTL ope

FB2041 General Description

The FB2041 is a 7-bit bidirectional BTL transceiver and is intended to provide the electrical interface to a high performance wired-OR bus. The FB2041 is an inverting transceiver. The B-port drivers are Low-capacitance open collectors with controlled ramp and are designed to sink 100mA. Precision ba.

FB2041 Datasheet (148.08 KB)

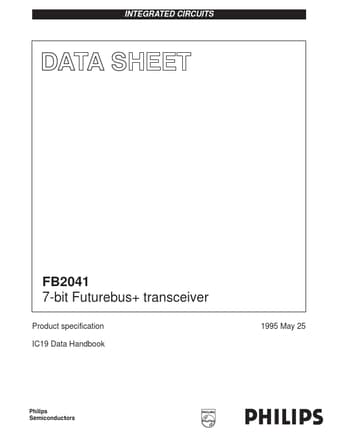

FB2041 Datasheet Preview — Preview of FB2041 PDF

Datasheet Details

Part number:

FB2041

Manufacturer:

NXP ↗

File Size:

148.08 KB

Description:

7-bit futurebus transceiver.
INTEGRATED CIRCUITS FB2041 7-bit Futurebus+ transceiver Product specification IC19 Data Handbook 1995 May 25 Philips Semiconductors Philips Semicon.
