4N04L07 - Power-Transistor

4N04L07 Description

OptiMOS™-T2 Power-Transistor .

4N04L07 Features

* Dual N-channel Logic Level - Enhancement mode
* AEC Q101 qualified
* MSL1 up to 260°C peak reflow
* 175°C operating temperature
* Green Product (RoHS compliant)
* 100% Avalanche tested
* Feasible for automatic optical inspection (AOI) IPG20N

📥 Download Datasheet

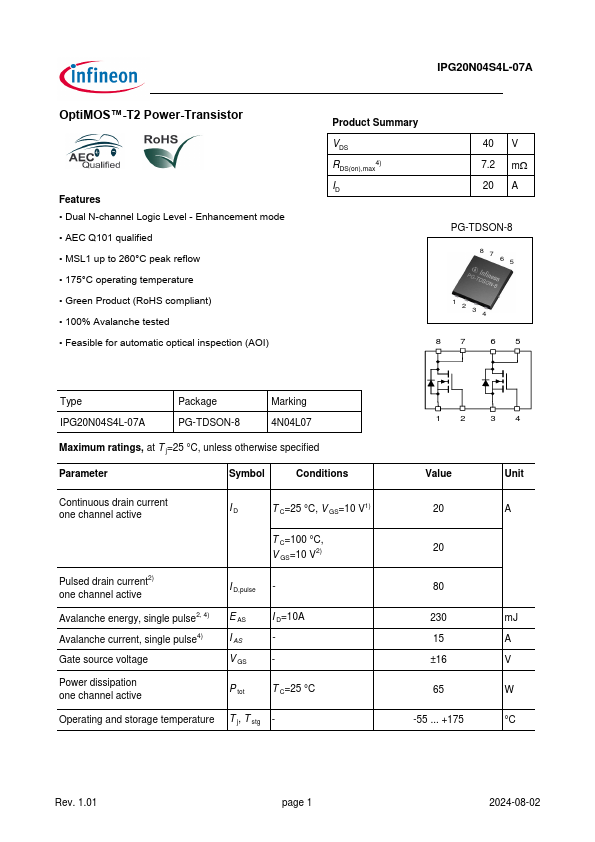

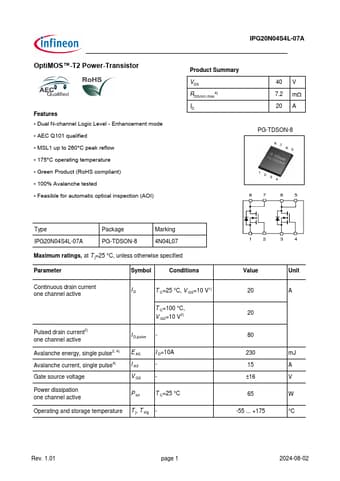

Preview of 4N04L07 PDF

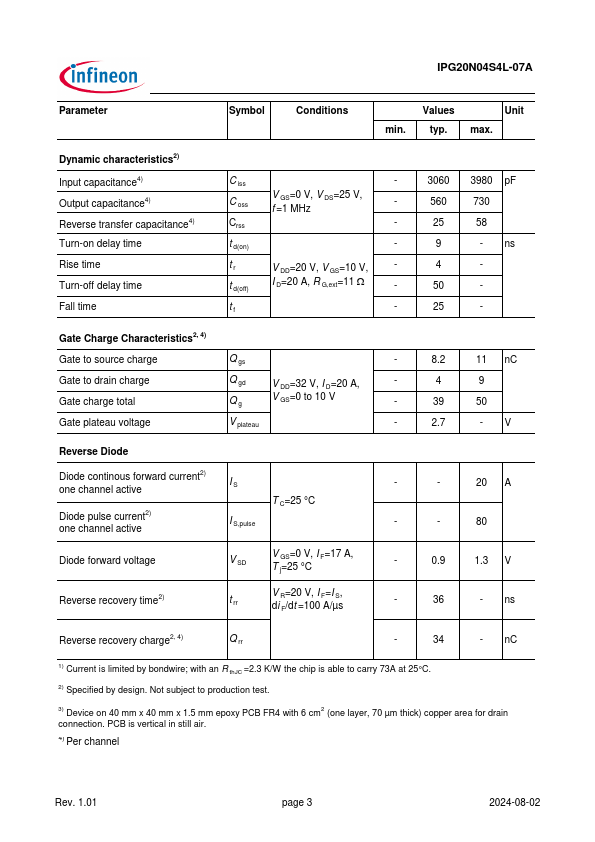

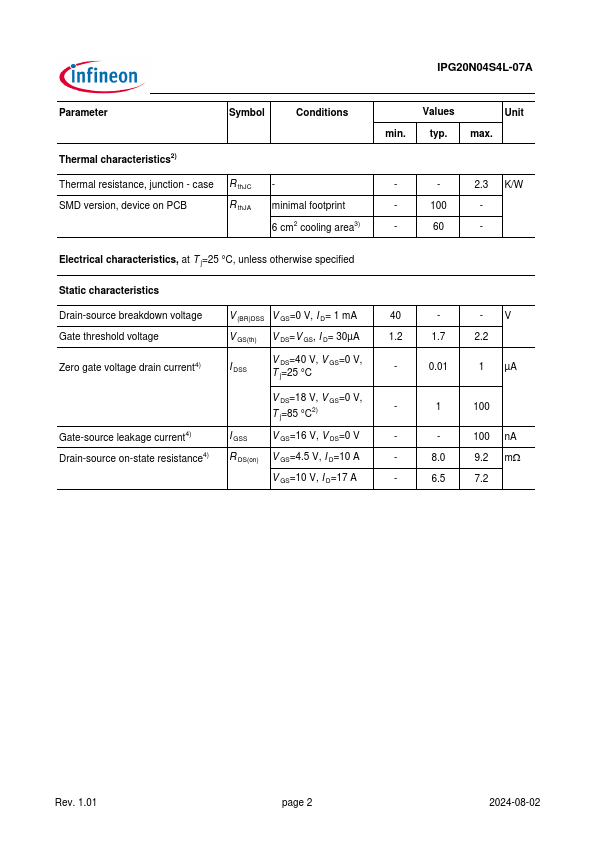

datasheet Preview Page 2 datasheet Preview Page 3
