4N06L30 - N-Channel 60V MOSFET

4N06L30 Description

4N06L30-VB 4N06L30-VB Datasheet N-Channel 6 0-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) rDS(on) (Ω) 60 0.025 at VGS = 10 V 0.030 at VGS = 4.5 V I.

4N06L30 Features

* Trench Power MOSFET
* 175 °C Junction Temperature www. VBsemi. com Available RoHS
* COMPLIANT TO-252 D GDS Top View Drain Connected to Tab G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Gate-Source Voltage

📥 Download Datasheet

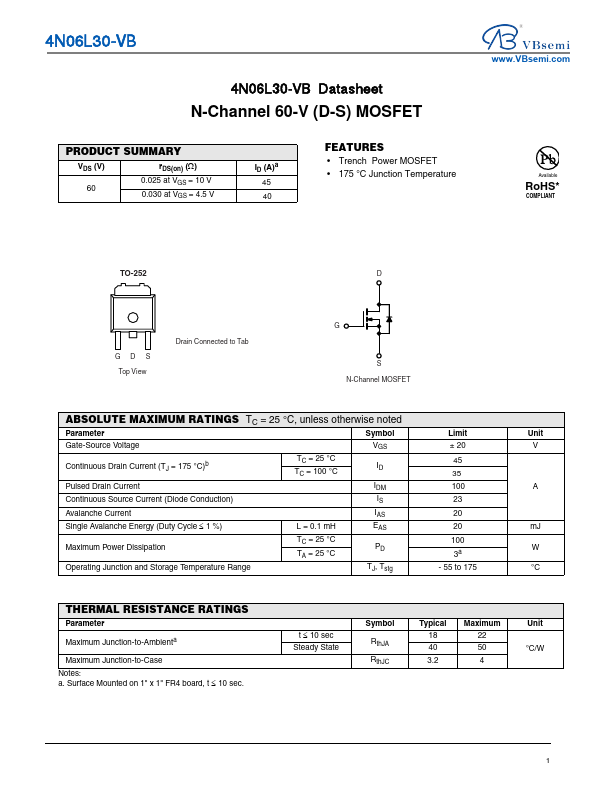

Preview of 4N06L30 PDF

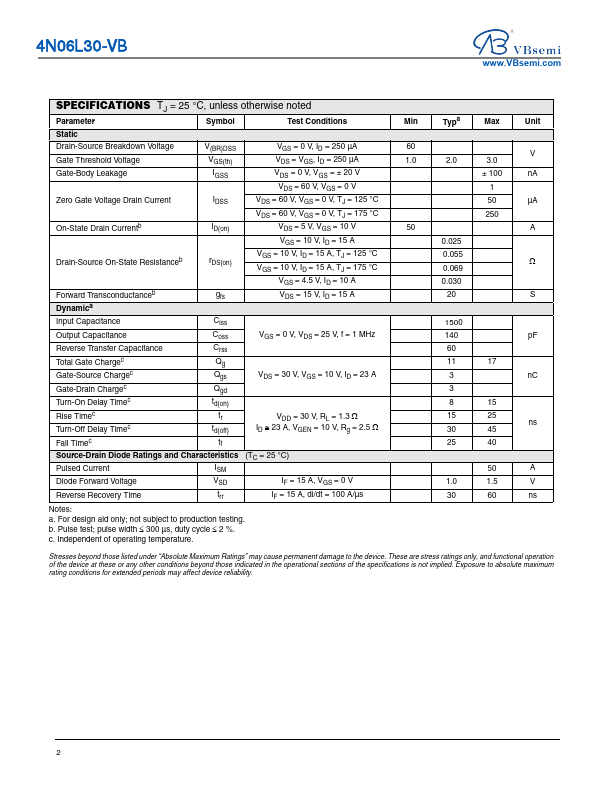

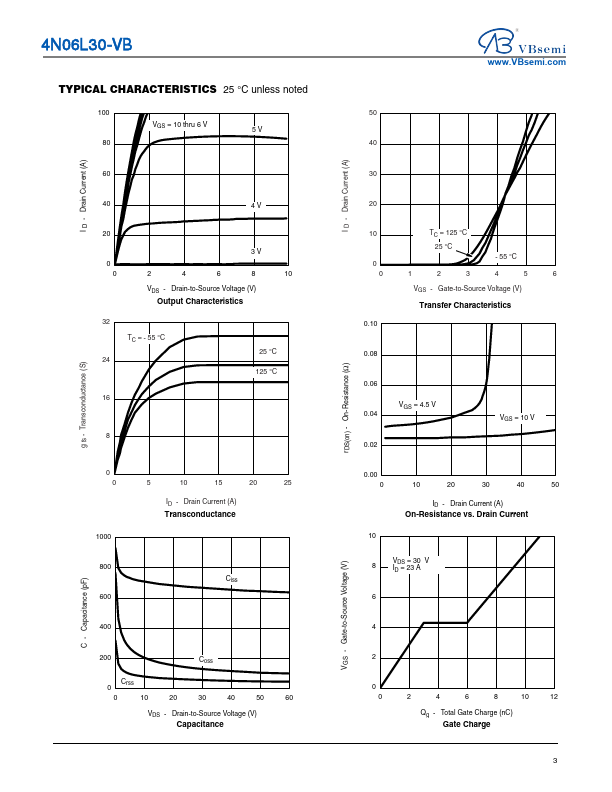

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
4N06L30
Manufacturer
VBsemi
File Size
223.74 KB
Datasheet
4N06L30-VBsemi.pdf
Description
N-Channel 60V MOSFET
