4N03L03, N-Channel 30V MOSFET

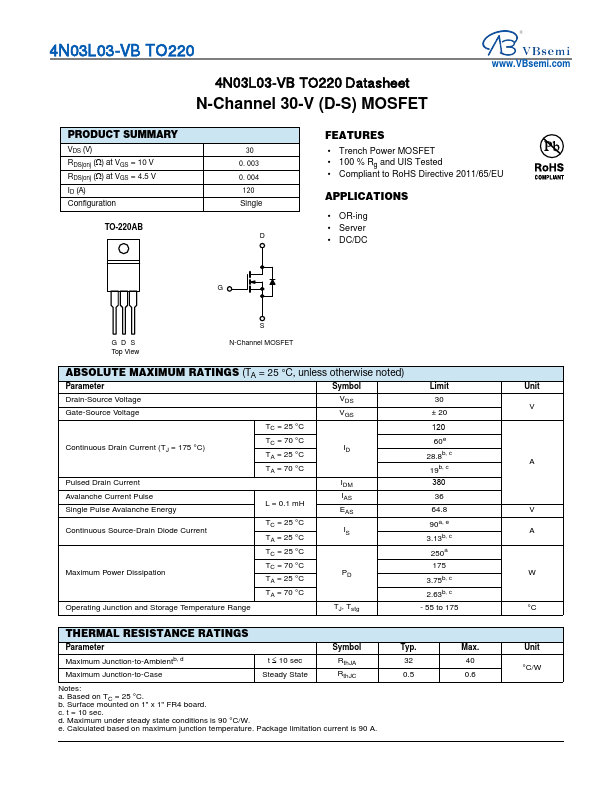

4N03L03-VB TO220 4N03L03-VB TO220 Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () at VGS = 10 V RDS(on) ().

datasheet Preview Page 1 from Datasheet4u.com

4N03L03-VBsemi.pdf

4N03L03 Datasheet Preview — Preview of 4N03L03 PDF

Datasheet Details

Part number:

4N03L03

Manufacturer:

VBsemi

File Size:

245.61 KB

Description:

N-Channel 30V MOSFET

Features

* Trench Power MOSFET
* 100 % Rg and UIS Tested

Applications

* OR-ing
* Server
* DC/DC G GDS Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 175 °C) TC = 70 °C TA = 25 °C ID
