AIMBG120R120M1 Datasheet, Mosfet, Infineon

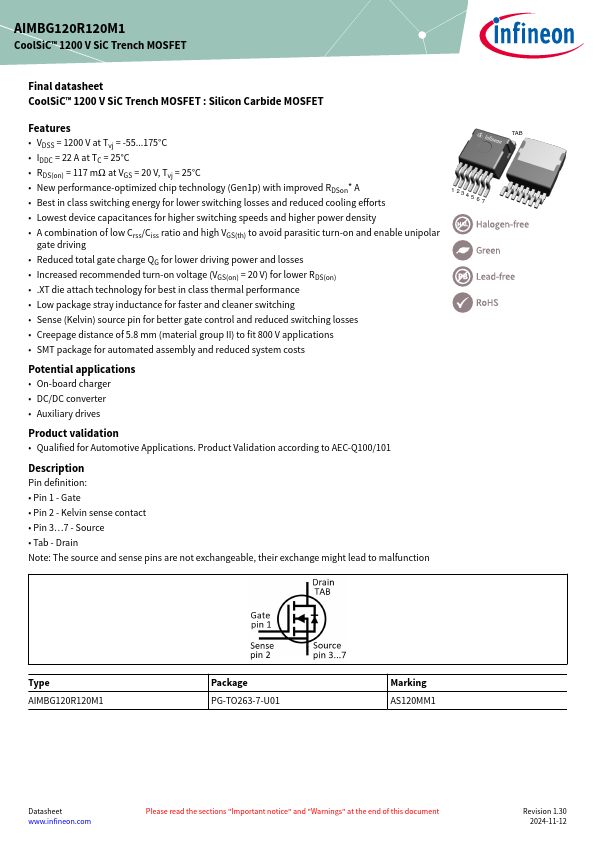

AIMBG120R120M1 Features

• Mosfet

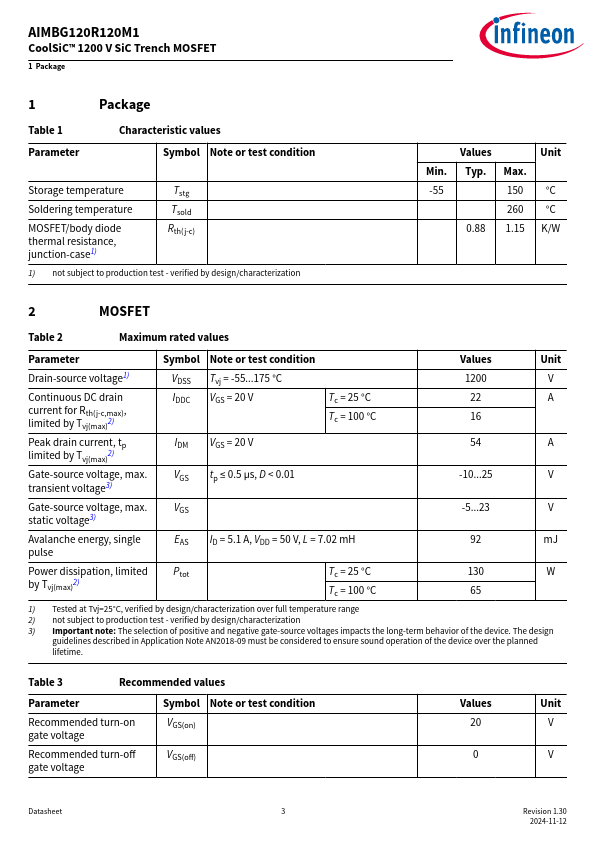

• VDSS = 1200 V at Tvj = -55175°C
• IDDC = 22 A at TC = 25°C
• RDS(on) = 117 mΩ at VGS = 20 V, Tvj = 25°C
• New performance-optimized chip technology (Ge

PDF File Details

Part number:

AIMBG120R120M1

Manufacturer:

Infineon ↗

File Size:

1.60MB

Download:

📄 Datasheet

Description:

Mosfet. Pin definition:

Pin 1 - Gate

Pin 2 - Kelvin sense contact

Pin 3…7 - Source

Tab - Drain Note:

AIMBG120R120M1 Application

• Applications without coating
• SMT package for automated assembly and reduced system costs TAB 1 234 5 6 7 Copyright © Infineon Technologie
