AUIR3200S Datasheet - Infineon

MOSFET DRIVER

AUIR3200S General Description

The AUIR3200S is a high side mosfet driver for very low Rdson automotive application. It offers over-current, overtemperature protection and diagnostic. The over-current protection is done by monitoring the Vds voltage, the threshold is programmable by external resistor. The overtemperature protecti.

AUIR3200S Datasheet (795.40 KB)

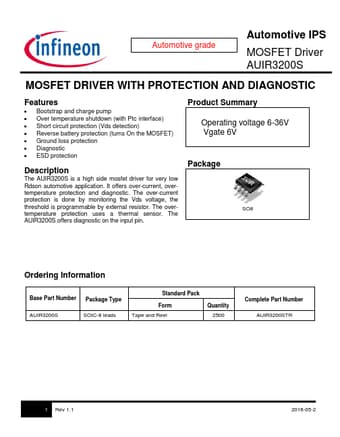

Preview of AUIR3200S PDF

Datasheet Details

Part number:

AUIR3200S

Manufacturer:

Infineon ↗

File Size:

795.40 KB

Description:

Mosfet driver.
