AUIR3313

PROGRAMMABLE CURRENT SENSE HIGH SIDE SWITCH

AUIR3313 Features

* Load current feedback Programmable over current shutdown Active clamp ESD protection Input referenced to Vcc Over temperature shutdown Reverse battery protection Lead Free, RoHS compliant Product Summary Rds(on) 7 m max. Vcc op. 6 to 32V Current Ratio 8800 Prog. Ishutdown 10 to 90A Vclamp 40V Packa

AUIR3313 General Description

The AUIR3313(S) is a fully protected 4 terminals high side switch. The input signal is referenced to Vcc. When the input voltage Vcc - Vin is higher than the specified threshold, the output power Mosfet is turned on. When the Vcc - Vin is lower than the specified Vil threshold, the output Mosfet is .

AUIR3313 Datasheet (726.43 KB)

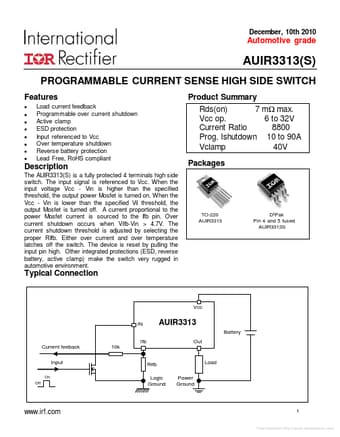

Preview of AUIR3313 PDF

Datasheet Details

Part number:

AUIR3313

Manufacturer:

International Rectifier

File Size:

726.43 KB

Description:

Programmable current sense high side switch.
