AUIR3314, PROGRAMMABLE CURRENT SENSE HIGH SIDE SWITCH

November, 14th 2010 Automotive grade AUIR3314(S) PROGRAMMABLE CURRENT SENSE HIGH SIDE SWITCH .
The AUIR3314(S) is a fully protected 4 terminals high side switch.

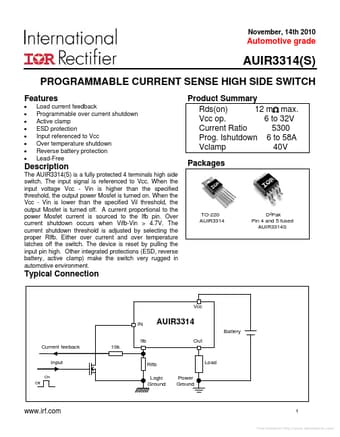

datasheet Preview Page 1 from Datasheet4u.com

AUIR3314_InternationalRectifier.pdf

AUIR3314 Datasheet Preview — Preview of AUIR3314 PDF

Datasheet Details

Part number:

AUIR3314

Manufacturer:

International Rectifier

File Size:

443.97 KB

Description:

PROGRAMMABLE CURRENT SENSE HIGH SIDE SWITCH

Features

* Load current feedback Programmable over current shutdown Active clamp ESD protection Input referenced to Vcc Over temperature shutdown Reverse battery protection Lead-Free Product Summary Rds(on) 12 m max. Vcc op. 6 to 32V Current Ratio 5300 Prog. Is
