AUIR3315 Datasheet - International Rectifier

PROGRAMMABLE CURRENT SENSE HIGH SIDE SWITCH

AUIR3315 Features

* Load current feedback Programmable over current shutdown Active clamp ESD protection Input referenced to Vcc Over temperature shutdown Reverse battery protection Lead-Free Product Summary Rds(on) 20 m max. Vcc op. 6 to 32V Current Ratio 2800 Prog. Is

AUIR3315 General Description

The AUIR3315(S) is a fully protected 4 terminals high side switch. The input signal is referenced to Vcc. When the input voltage Vcc - Vin is higher than the specified threshold, the output power Mosfet is turned on. When the Vcc - Vin is lower than the specified Vil threshold, the output Mosfet is .

AUIR3315 Datasheet (431.35 KB)

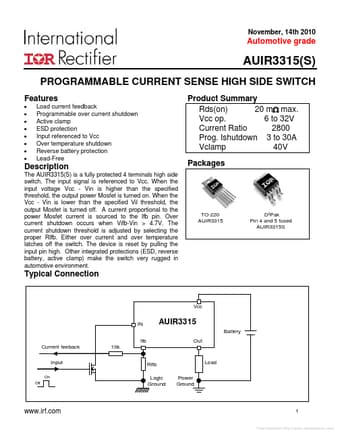

AUIR3315 Datasheet Preview — Preview of AUIR3315 PDF

Datasheet Details

Part number:

AUIR3315

Manufacturer:

International Rectifier

File Size:

431.35 KB

Description:

Programmable current sense high side switch.
