AUIR3315S, AUIR3315 Datasheet - International Rectifier

AUIR3315S PROGRAMMABLE CURRENT SENSE HIGH SIDE SWITCH

The AUIR3315(S) is a fully protected 4 terminals high side switch. The input signal is referenced to Vcc. When the input voltage Vcc - Vin is higher than the specified threshold, the output power Mosfet is turned on. When the Vcc - Vin is lower than the specified Vil threshold, the output Mosfet is .

AUIR3315S Features

* Load current feedback Programmable over current shutdown Active clamp ESD protection Input referenced to Vcc Over temperature shutdown Reverse battery protection Lead-Free Product Summary Rds(on) 20 m max. Vcc op. 6 to 32V Current Ratio 2800 Prog. Is

AUIR3315_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: AUIR3315S, AUIR3315. Please refer to the document for exact specifications by model.

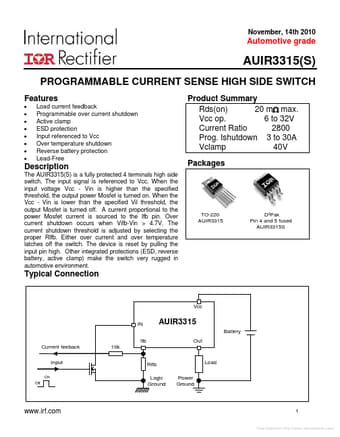

AUIR3315S Datasheet Preview Page 2 AUIR3315S Datasheet Preview Page 3

Datasheet Details

Part number:

AUIR3315S, AUIR3315

Manufacturer:

International Rectifier

File Size:

431.35 KB

Description:

Programmable current sense high side switch.

Note:

This datasheet PDF includes multiple part numbers: AUIR3315S, AUIR3315.
Please refer to the document for exact specifications by model.
