AUIR3314S

PROGRAMMABLE CURRENT SENSE HIGH SIDE SWITCH

AUIR3314S Features

* Load current feedback Programmable over current shutdown Active clamp ESD protection Input referenced to Vcc Over temperature shutdown Reverse battery protection Lead-Free Product Summary Rds(on) 12 m max. Vcc op. 6 to 32V Current Ratio 5300 Prog. Is

AUIR3314S General Description

The AUIR3314(S) is a fully protected 4 terminals high side switch. The input signal is referenced to Vcc. When the input voltage Vcc - Vin is higher than the specified threshold, the output power Mosfet is turned on. When the Vcc - Vin is lower than the specified Vil threshold, the output Mosfet is .

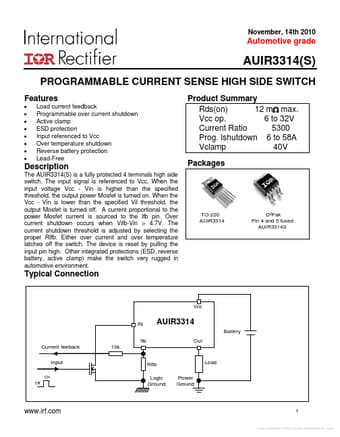

AUIR3314S Datasheet (443.97 KB)

Preview of AUIR3314S PDF

Datasheet Details

Part number:

AUIR3314S

Manufacturer:

International Rectifier

File Size:

443.97 KB

Description:

Programmable current sense high side switch.
