BBY56-03W, BBY56-02V Datasheet - Infineon

BBY56-03W Silicon Tuning Diode

Silicon Tuning Diode Excellent linearity Low series resistance Designed for low tuning voltage operation for VCO's in mobile communications equipment Very low capacitance spread Pb-free (RoHS compliant) package BBY56 BBY56-02V BBY56-02W BBY56-03W  Type BBY56-02V BBY56-02W BBY56-03W Not for new design Package SC79 SCD80 SOD323 Configuration single single single Marking 9 66 red 6 Maximum Ratings at TA = 25 °C, unless otherwise s.

BBY56-02V-InfineonTechnologiesAG.pdf

This datasheet PDF includes multiple part numbers: BBY56-03W, BBY56-02V. Please refer to the document for exact specifications by model.

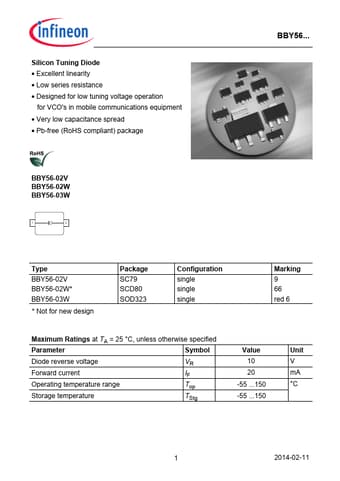

BBY56-03W Datasheet Preview Page 2 BBY56-03W Datasheet Preview Page 3

Datasheet Details

Part number:

BBY56-03W, BBY56-02V

Manufacturer:

Infineon ↗

File Size:

878.92 KB

Description:

Silicon tuning diode.

Note:

This datasheet PDF includes multiple part numbers: BBY56-03W, BBY56-02V.
Please refer to the document for exact specifications by model.
