BSP170I - -60V Small Signal MOSFET

Datasheet Summary

Description

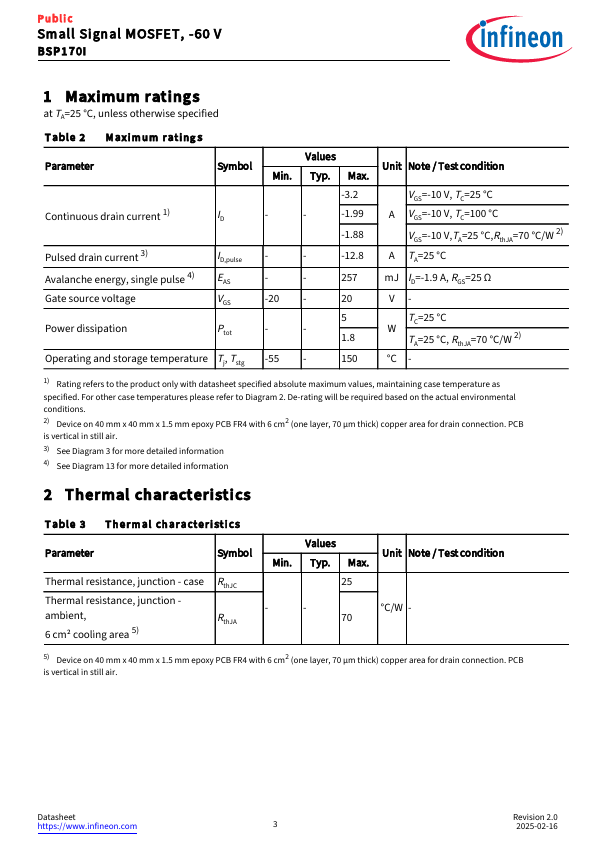

1 Maximum ratings 3 T

Features

  • P‑channel.
  • Very low on‑resistance RDS(on).
  • Superior thermal resistance.
  • 100% avalanche tested.
  • Pb‑free lead plating; RoHS compliant.
  • Halogen‑free according to IEC61249‑2‑21 Product validation Fully qualified according to JEDEC for Industrial.

📥 Download Datasheet

Datasheet preview – BSP170I

Datasheet Details

Part number BSP170I
Manufacturer Infineon
File Size 923.93 KB
Description -60V Small Signal MOSFET
Datasheet download datasheet BSP170I Datasheet
Additional preview pages of the BSP170I datasheet.

📁 Similar Datasheet

  • BSP170 - SIPMOS Small-Signal Transistor (Siemens Semiconductor Group)
  • BSP170P - SIPMOS Power Transistor (Siemens Semiconductor Group)
  • BSP170P - SIPMOS Small-Signal-Transistor (Infineon Technologies AG)
  • BSP17 - SIPMOS Small-Signal Transistor (Siemens Semiconductor Group)
  • BSP171 - SIPMOS Small-Signal Transistor (Siemens Semiconductor Group)
  • BSP171P - SIPMOS Power Transistor (Siemens Semiconductor Group)
  • BSP171P - SIPMOS Small-Signal-Transistor (Infineon Technologies AG)
  • BSP100 - N-channel enhancement mode TrenchMOS transistor (NXP)
  • BSP100 - N-channel enhancement mode TrenchMOS transistor (NXP)
  • BSP106 - N-channel enhancement mode vertical D-MOS transistor (NXP)
Other Datasheets by Infineon
  • BSP179 - Small-Signal-Transistor
  • BSP612P - Small-Signal-Transistor
  • BSP716N - Small-Signal-Transistor
  • BSP75N - Smart Lowside Power Switch

Full PDF Text Transcription

Click to expand full text

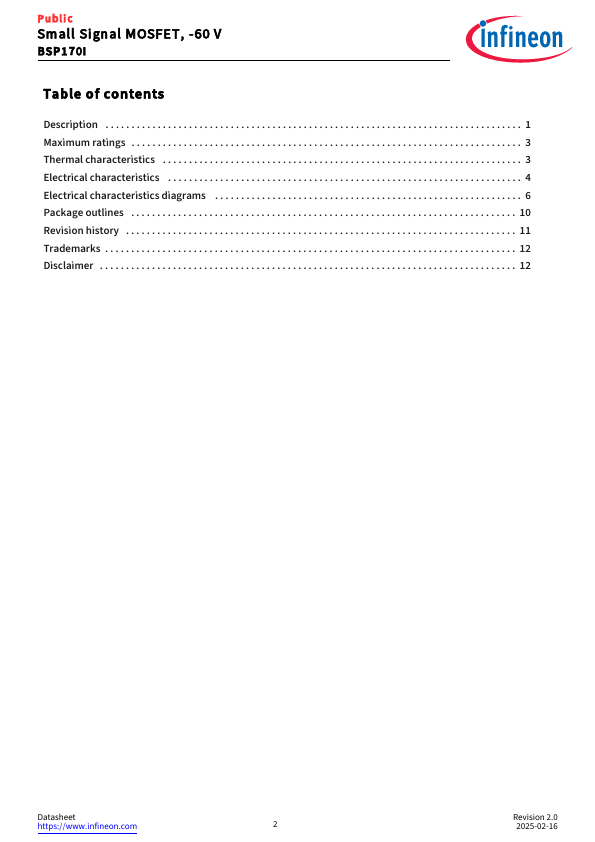

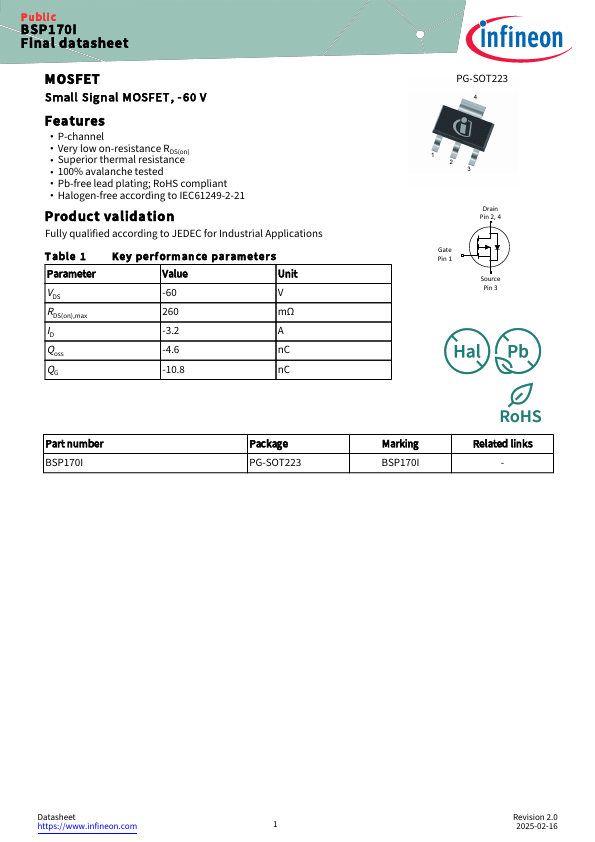

Public BSP170I Final datasheet MOSFET Small Signal MOSFET, ‑60 V Features • P‑channel • Very low on‑resistance RDS(on) • Superior thermal resistance • 100% avalanche tested • Pb‑free lead plating; RoHS compliant • Halogen‑free according to IEC61249‑2‑21 Product validation Fully qualified according to JEDEC for Industrial Applications Table 1 Parameter VDS RDS(on),max ID Qoss QG Key performance parameters Value Unit ‑60 V 260 mΩ ‑3.2 A ‑4.6 nC ‑10.8 nC PG‑SOT223 4 1 2 3 Drain Pin 2, 4 Gate Pin 1 Source Pin 3 Part number BSP170I Package PG‑SOT223 Marking BSP170I Related links ‑ Datasheet https://www.infineon.com 1 Revision 2.0 2025‑02‑16 Public Small Signal MOSFET, ‑60 V BSP170I Table of contents Description . . . . . . . . . . . . . . . . . . . . . . . . . . .
