BTN9960LV - single half-bridge

Infineon

📥 Download Datasheet

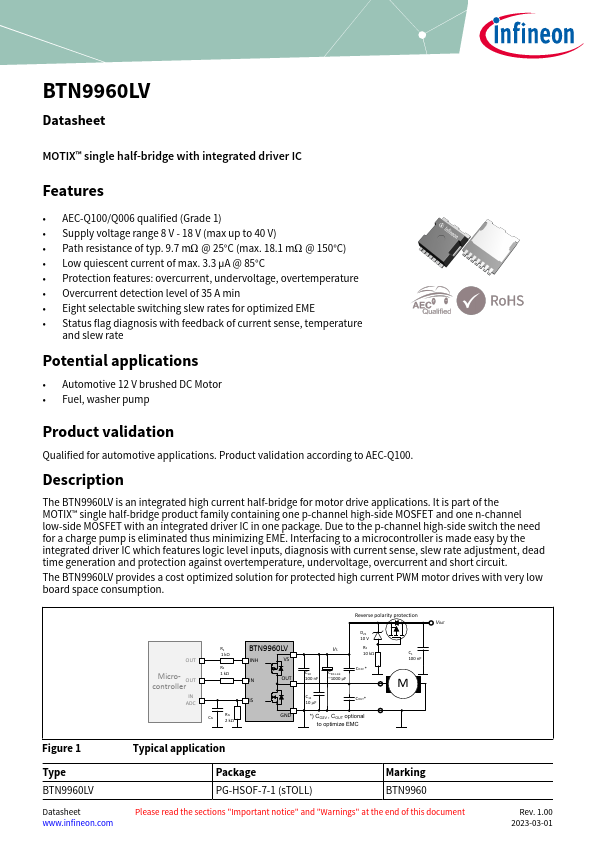

BTN9960LV Datasheet Preview — Preview of BTN9960LV PDF

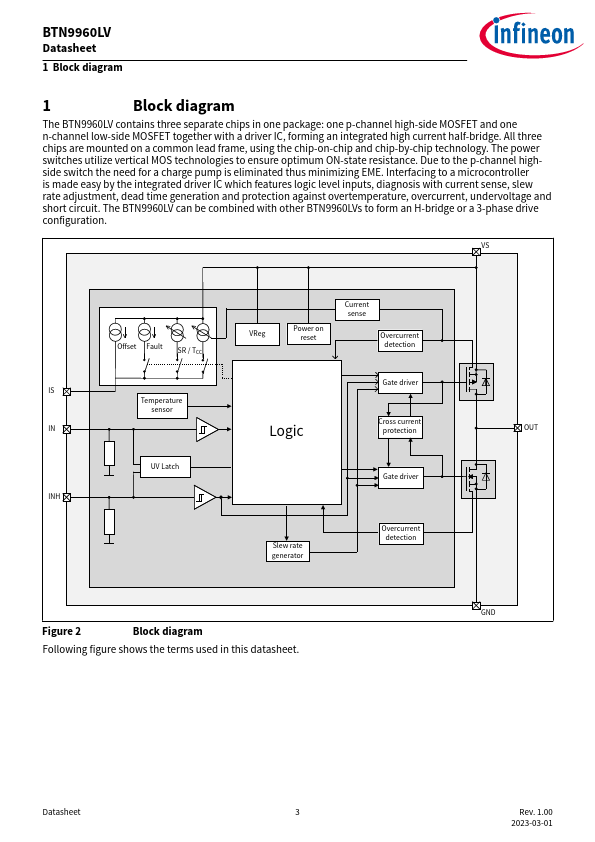

datasheet Preview Page 2

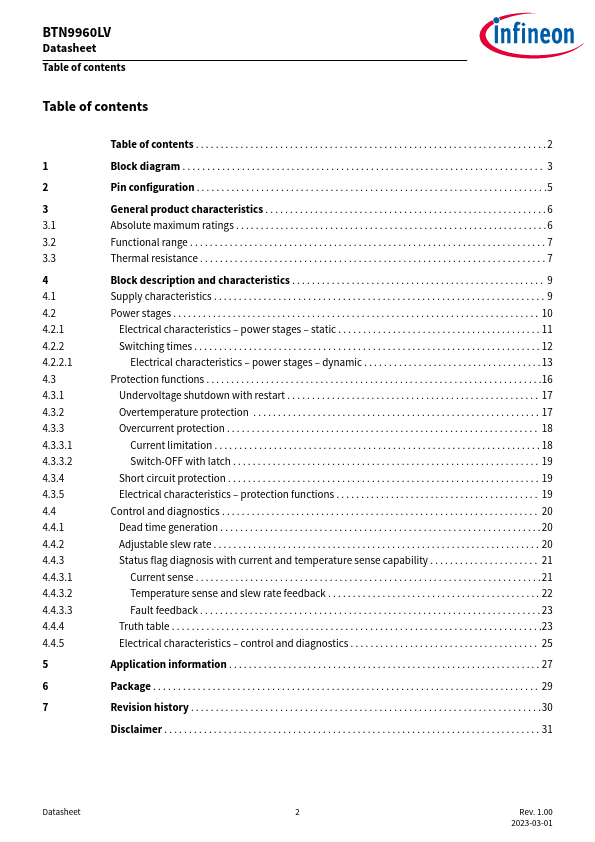

datasheet Preview Page 3

Datasheet Details

Part number	BTN9960LV
Manufacturer	Infineon ↗
File Size	641.14 KB
Description	single half-bridge
Datasheet	BTN9960LV-Infineon.pdf

BTN9960LV Product details

Description

The BTN9960LV is an integrated high current half-bridge for motor drive applications.

Features

AEC-Q100/Q006 qualified (Grade 1).
Supply voltage range 8 V - 18 V (max up to 40 V).
Path resistance of typ. 9.7 mΩ @ 25°C (max. 18.1 mΩ @ 150°C).
Low quiescent current of max. 3.3 µA @ 85°C.
Protection features: overcurrent, undervoltage, overtemperature.
Overcurrent detection level of 35 A min.
Eight selectable switching slew rates for optimized EME.
Status flag diagnosis with feedback of current sense, temperature and sl.
