BTN9970LV - High current PN half-bridge

Infineon

📥 Download Datasheet

BTN9970LV Datasheet Preview — Preview of BTN9970LV PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BTN9970LV
Manufacturer	Infineon ↗
File Size	657.50 KB
Description	High current PN half-bridge
Datasheet	BTN9970LV-Infineon.pdf

BTN9970LV Product details

Description

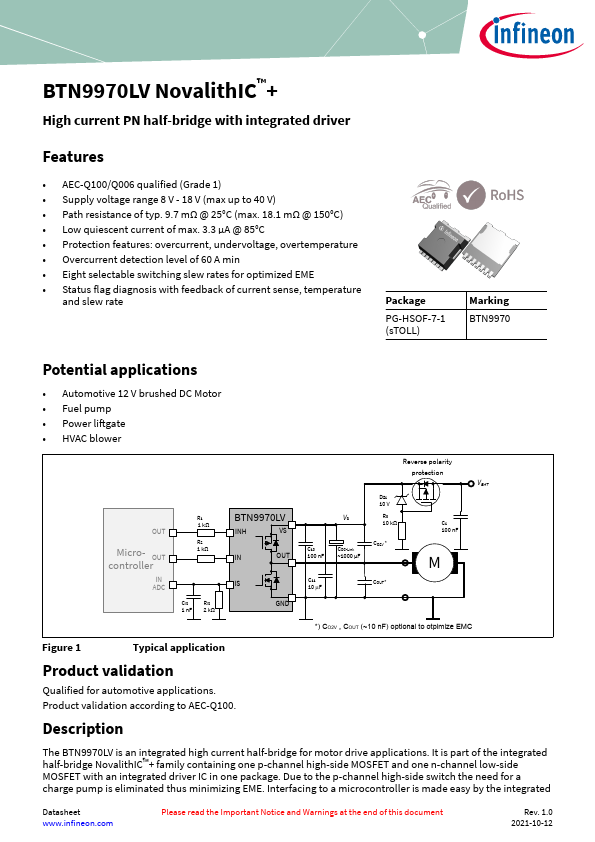

The BTN9970LV is an integrated high current half-bridge for motor drive applications.

Features

AEC-Q100/Q006 qualified (Grade 1).
Supply voltage range 8 V - 18 V (max up to 40 V).
Path resistance of typ. 9.7 mΩ @ 25°C (max. 18.1 mΩ @ 150°C).
Low quiescent current of max. 3.3 µA @ 85°C.
Protection features: overcurrent, undervoltage, overtemperature.
Overcurrent detection level of 60 A min.
Eight selectable switching slew rates for optimized EME.
Status flag diagnosis with feedback of current sense, temperature and sl.
