BTS7080-2EPA Smart High-Side Power Switch

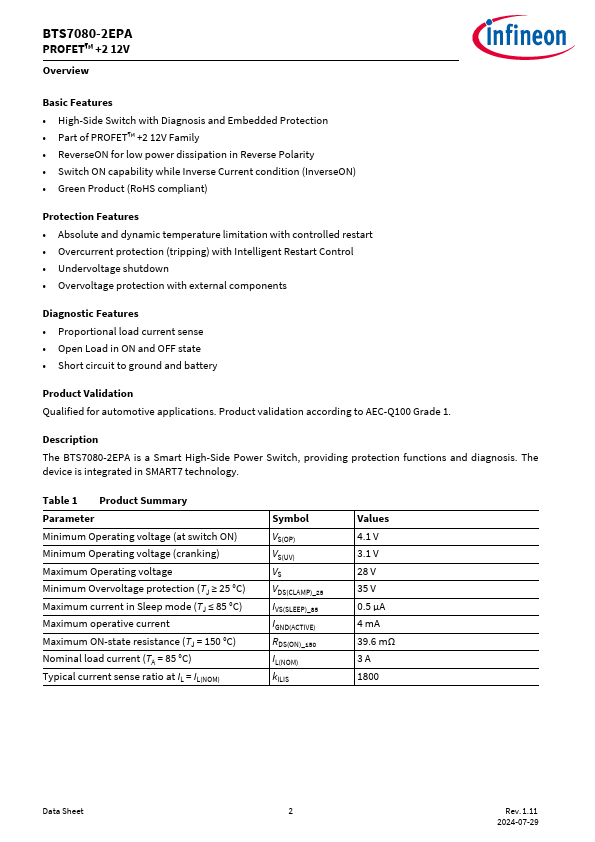

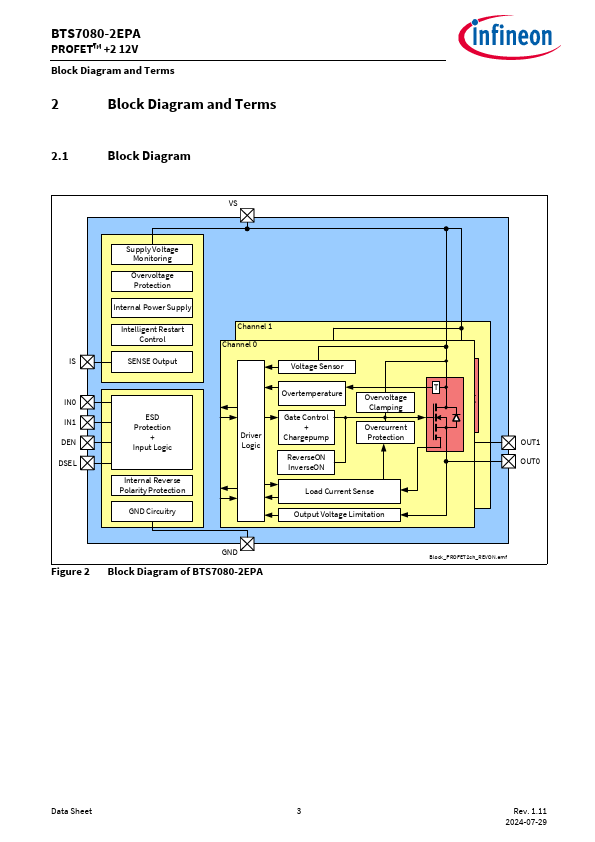

The BTS7080-2EPA is a Smart High-Side Power Switch, providing protection functions and diagnosis. The device is integrated in SMART7 technology. Table 1 Product Summary Parameter Minimum Operating voltage (at switch ON) Minimum Operating voltage (cranking) Maximum Operating voltage Minimum Overvolt.

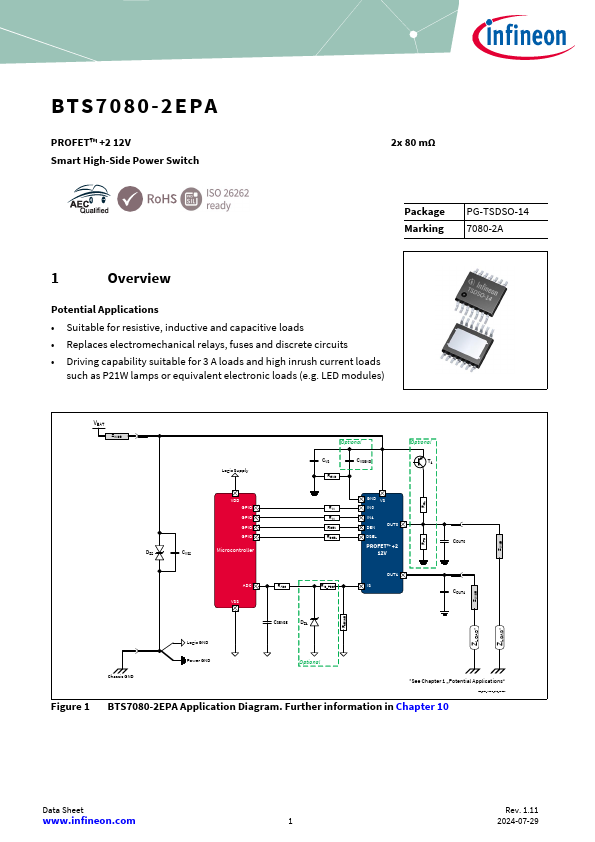

BTS7080-2EPA PROFET™ +2 12V Smart High-Side Power Switch 2x 80 mΩ Package Marking PG-TSDSO-14 7080-2A 1 Overview Potential Applications Suitable for resistive, inductive and capacitive loads Replaces electromechanical relays, fuses and discrete circuits Driving capability suitable for 3 A loads and high inrush current loads such as P21W lamps or equivalent electronic loads (e.g. LED modules) VBAT ZWIRE Logic Supply Optional CVS RGND CVSGND Optional T1 V.

BTS7080-2EPA Features

* High-Side Switch with Diagnosis and Embedded Protection

* Part of PROFET™ +2 12V Family

* ReverseON for low power dissipation in Reverse Polarity

* Switch ON capability while Inverse Current condition (InverseON)

* Green Product (RoHS compliant) Protection

BTS7080-2EPA Datasheet (1.71 MB)
