BTS7090-2EPL Smart high-side power switch

📥 Download Datasheet Datasheet Preview Page 1

Description

BTS7090-2EPL Datasheet PROFET™ +2 12V Smart high-side power switch .
The BTS7090-2EPL is a Smart High Side Switch, providing protection functions and diagnosis capabilities.

📥 Download Datasheet

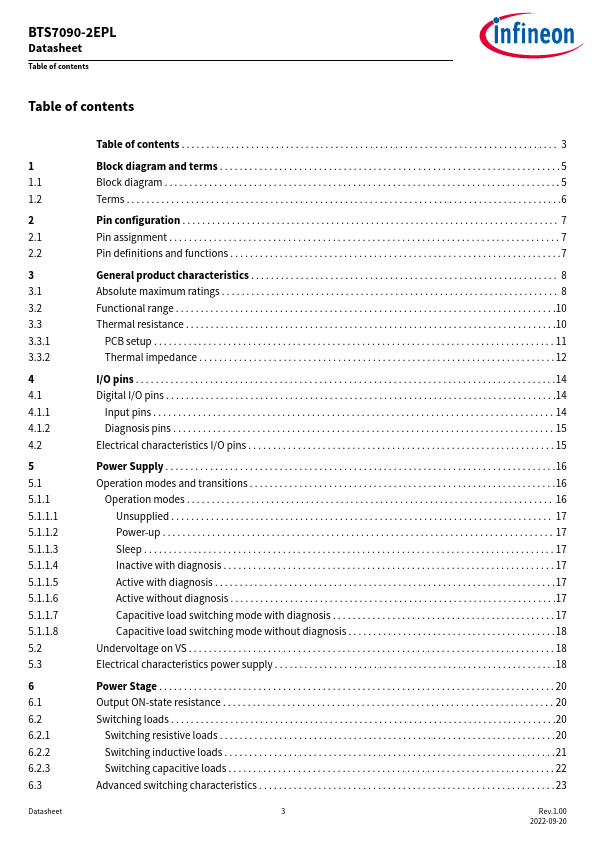

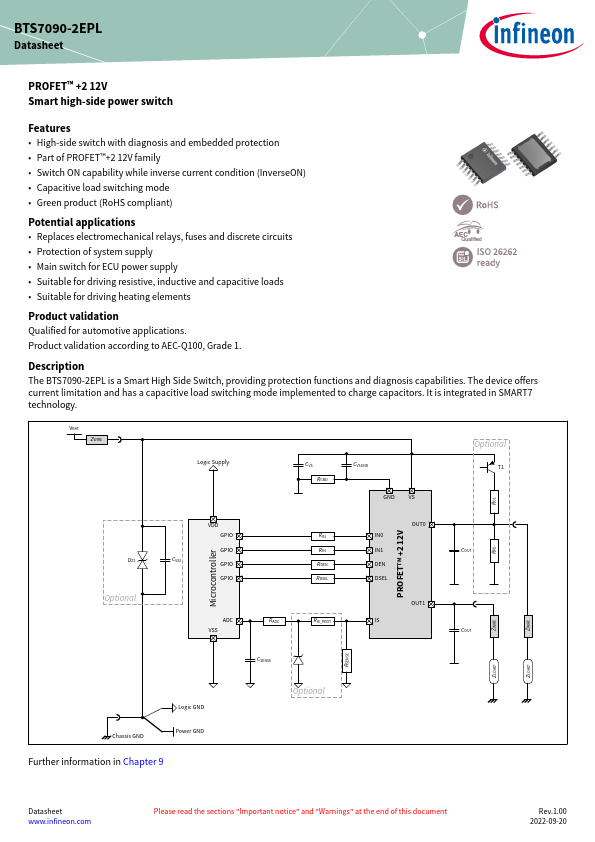

Preview of BTS7090-2EPL PDF

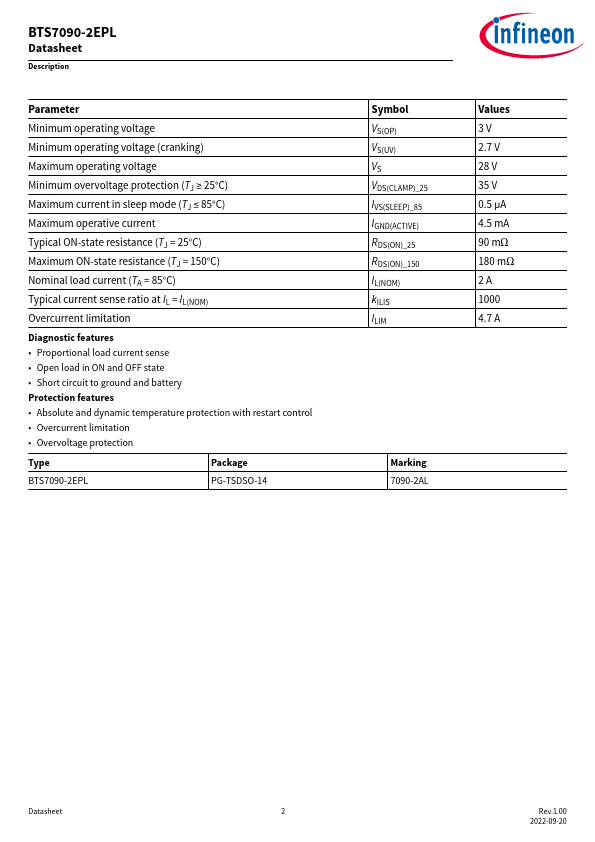

datasheet Preview Page 2 datasheet Preview Page 3

Features

* High-side switch with diagnosis and embedded protection
* Part of PROFET™+2 12V family
* Switch ON capability while inverse current condition (InverseON)
* Capacitive load switching mode

Applications

* Replaces electromechanical relays, fuses and discrete circuits
* Protection of system supply
* Main switch for ECU power supply
* Suitable for driving resistive, inductive and capacitive loads
* Suitable for driving heating elements Product validation Qualif
