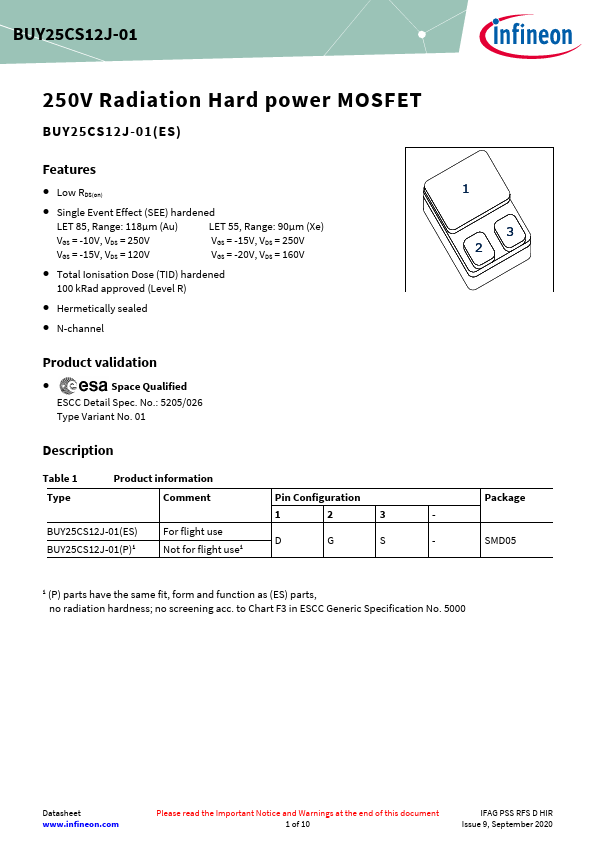

BUY25CS12J-01 Datasheet - Infineon

250V Radiation Hard power MOSFET

BUY25CS12J-01 Features

* Low RDS(on)

* Single Event Effect (SEE) hardened LET 85, Range: 118µm (Au) LET 55, Range: 90µm (Xe) VGS = -10V, VDS = 250V VGS = -15V, VDS = 250V VGS = -15V, VDS = 120V VGS = -20V, VDS = 160V

* Total Ionisation Dose (TID) hardened 100 kRad approved (Level R)

* Hermeticall

BUY25CS12J-01 General Description

Table 1 Type Product information Comment BUY25CS12J-01(ES) BUY25CS12J-01(P)1 For flight use Not for flight use1 Pin Configuration 1 2 3 D G S 1 3 2 Package - - SMD05 1 (P) parts have the same fit, form and function as (ES) parts, no radiation hardness; no screening acc. to Chart F3 i.

BUY25CS12J-01 Datasheet (577.27 KB)
