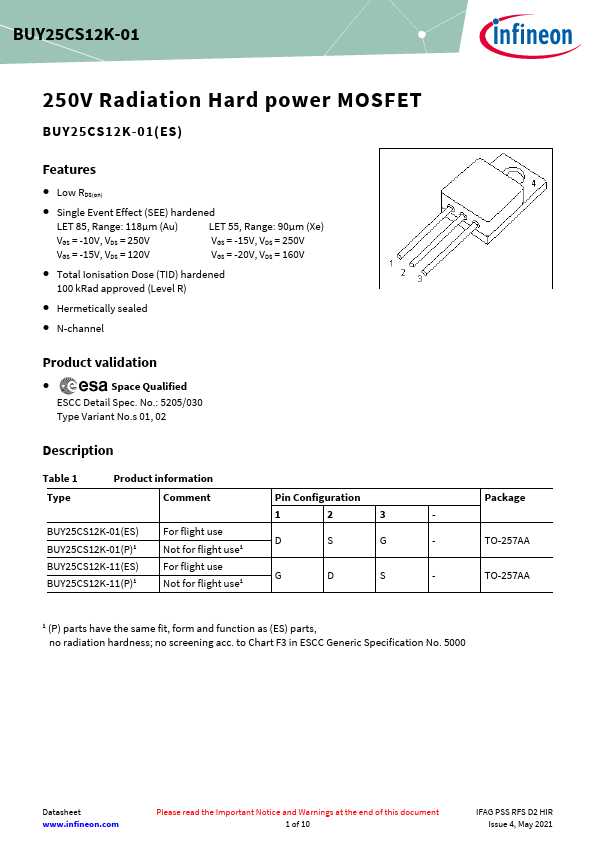

BUY25CS12K-01 Radiation Hard power MOSFET

Table 1 Product information Type Comment Pin Configuration 1 2 3 - BUY25CS12K-01(ES) For flight use D S G - BUY25CS12K-01(P)1 Not for flight use1 BUY25CS12K-11(ES) For flight use G D S - BUY25CS12K-11(P)1 Not for flight use1 Package TO-257AA TO-257AA 1 (P) parts have the same .

BUY25CS12K-01 Features

* Low RDS(on)

* Single Event Effect (SEE) hardened LET 85, Range: 118µm (Au) LET 55, Range: 90µm (Xe) VGS = -10V, VDS = 250V VGS = -15V, VDS = 250V VGS = -15V, VDS = 120V VGS = -20V, VDS = 160V

* Total Ionisation Dose (TID) hardened 100 kRad approved (Level R)

* Hermeticall
