BUY65CS28A-01 - 650V Radiation Hard power MOSFET

Infineon

📥 Download Datasheet

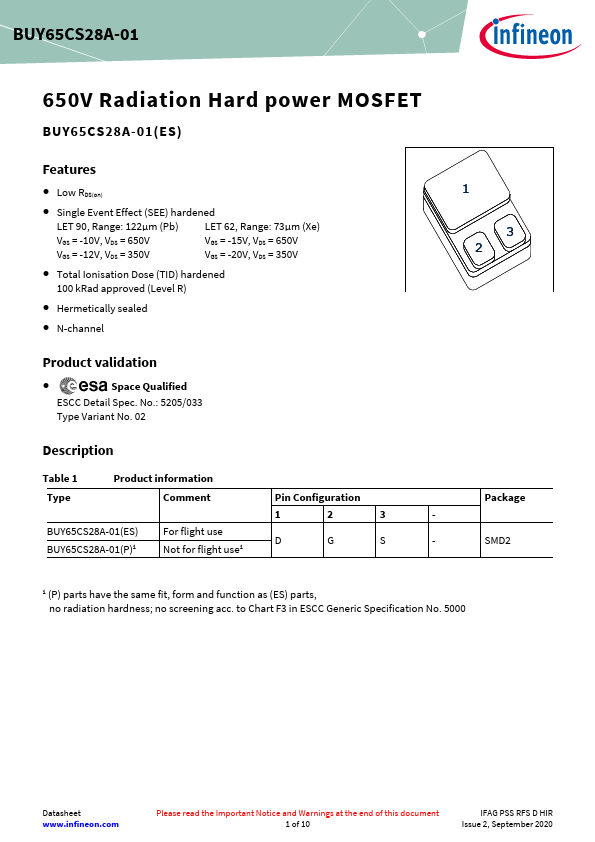

BUY65CS28A-01 Datasheet Preview — Preview of BUY65CS28A-01 PDF

Datasheet Details

Part number: BUY65CS28A-01
Manufacturer: Infineon ↗
File Size: 544.62 KB
Datasheet: BUY65CS28A-01-Infineon.pdf
Description: 650V Radiation Hard power MOSFET

BUY65CS28A-01 Product details

Description

Table 1 Type Product information Comment BUY65CS28A-01(ES) BUY65CS28A-01(P)1 For flight use Not for flight use1 Pin Configuration 1 2 3 D G S 1 3 2 Package - - SMD2 1 (P) parts have the same fit, form and function as (ES) parts, no radiation hardness; no screening acc.to Chart F3 in ESCC Generic Specification No.5000 Datasheet www.infineon.com Please read the Important Notice and Warnings at the end of this document 1 of 10 IFAG PSS RFS D HIR Issue 2, September 2020 650V Ra.

Features

Low RDS(on).
Single Event Effect (SEE) hardened LET 90, Range: 122µm (Pb) LET 62, Range: 73µm (Xe) VGS = -10V, VDS = 650V VGS = -15V, VDS = 650V VGS = -12V, VDS = 350V VGS = -20V, VDS = 350V.
Total Ionisation Dose (TID) hardened 100 kRad approved (Level R).
Hermetically sealed.
N-channel Product validation.
Space Qualified ESCC Detail Spec. No. : 5205/033 Type Variant No. 02.
