BUY06CS23K-01 Datasheet - Infineon

BUY06CS23K-01 - 60V Radiation Hard power MOSFET

Table 1 Type Product information Comment BUY06CS23K-01(ES) BUY06CS23K-01(P)1 For flight use Not for flight use1 Pin Configuration 1 2 3 D S G Package 4 Not connected TO-257AA 1 (P) parts have the same fit, form and function as (ES) parts, no radiation hardness; no screening acc. to C.

BUY06CS23K-01 Features

* Low RDS(on)

* Single Event Effect (SEE) hardened LET 95, Range: 86µm (Pb) LET 62, Range: 73µm (Xe) VGS = -5V, VDS = 60V VGS = -15V, VDS = 60V VGS = -10V, VDS = 50V VGS = -20V, VDS = 40V

* Total Ionisation Dose (TID) hardened 100 kRad approved (Level R)

* Hermetically seal

BUY06CS23K-01-Infineon.pdf

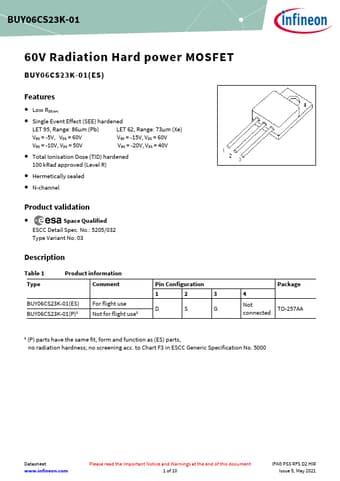

Preview of BUY06CS23K-01 PDF
BUY06CS23K-01 Datasheet Preview Page 2 BUY06CS23K-01 Datasheet Preview Page 3

Datasheet Details

Part number:

BUY06CS23K-01

Manufacturer:

Infineon ↗

File Size:

697.92 KB

Description:

60v radiation hard power mosfet.
