FP75R12N3T7, EconoPIM3 module

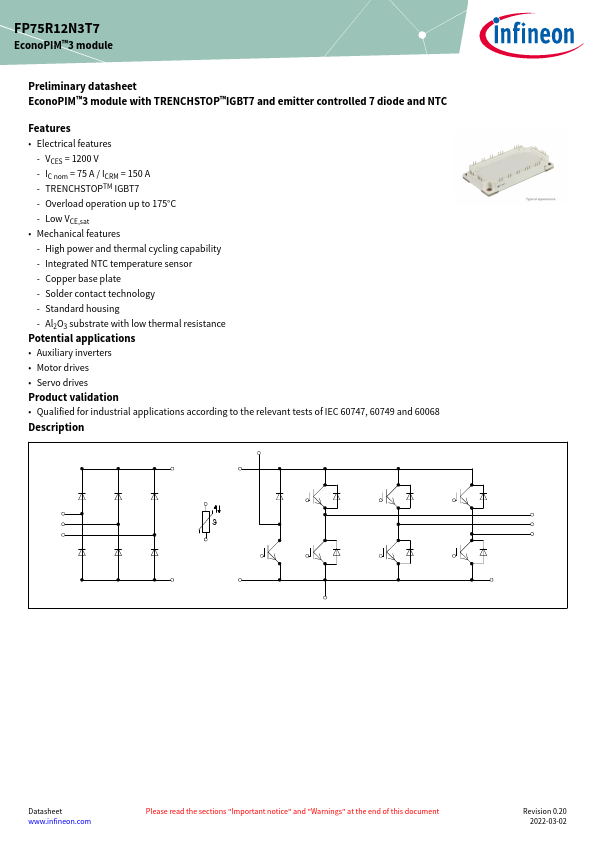

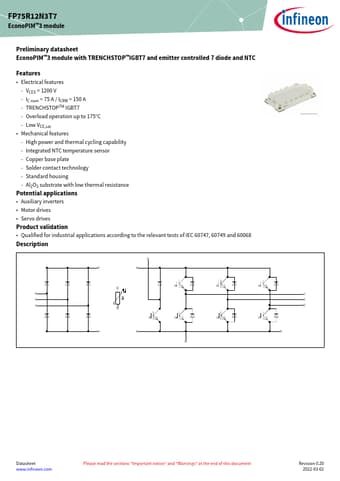

FP75R12N3T7 EconoPIM™3 module Preliminary datasheet EconoPIM™3 module with TRENCHSTOP™IGBT7 and emitter controlled 7 diode and NTC .
J Datasheet www.

datasheet Preview Page 1 from Datasheet4u.com

FP75R12N3T7-Infineon.pdf

FP75R12N3T7 Datasheet Preview — Preview of FP75R12N3T7 PDF

Datasheet Details

Part number:

FP75R12N3T7

Manufacturer:

Infineon ↗

File Size:

594.79 KB

Description:

EconoPIM3 module

Features

* Electrical features - VCES = 1200 V - IC nom = 75 A / ICRM = 150 A - TRENCHSTOPTM IGBT7 - Overload operation up to 175°C - Low VCE,sat
* Mechanical features - High power and thermal cycling capability - Integrated NTC temperature sensor - Copper base plate - Solder contact technolo

Applications

* Auxiliary inverters
* Motor drives
* Servo drives Product validation
