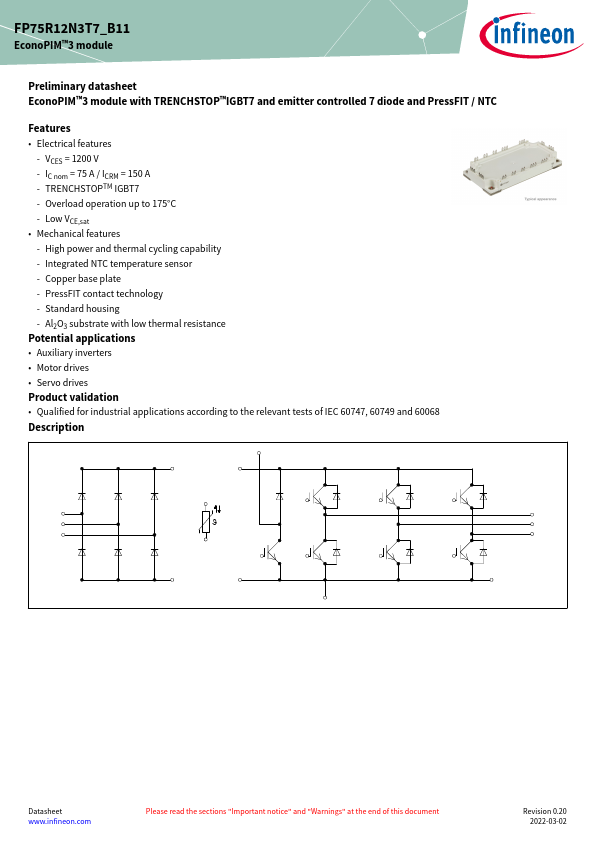

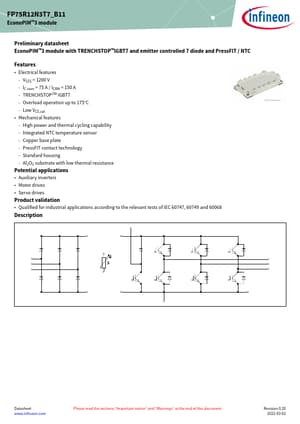

FP75R12N3T7_B11 EconoPIM3 module

FP75R12N3T7_B11 EconoPIM™3 module Preliminary datasheet EconoPIM™3 module with TRENCHSTOP™IGBT7 and emitter controlled 7 diode and PressFIT / NTC Feat.
J Datasheet www.

FP75R12N3T7_B11-Infineon.pdf

FP75R12N3T7_B11 Datasheet Preview — Preview of FP75R12N3T7_B11 PDF

Datasheet Details

Part number:

FP75R12N3T7_B11

Manufacturer:

Infineon ↗

File Size:

619.12 KB

Description:

EconoPIM3 module

Features

* Electrical features - VCES = 1200 V - IC nom = 75 A / ICRM = 150 A - TRENCHSTOPTM IGBT7 - Overload operation up to 175°C - Low VCE,sat
* Mechanical features - High power and thermal cycling capability - Integrated NTC temperature sensor - Copper base plate - PressFIT contact techno

Applications

* Auxiliary inverters
* Motor drives
* Servo drives Product validation
