ICE5QR4770AG Datasheet - Infineon

ICE5QR4770AG Integrated 700V / 800V avalanche rugged CoolMOS

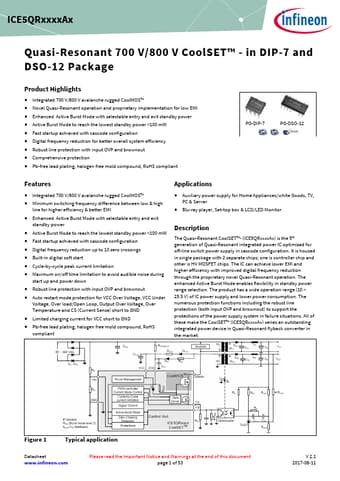

ICE5QRxxxxAx Quasi-Resonant 700 V/800 V CoolSET™ - in DIP-7 and DSO-12 Package Product Highlights Integrated 700 V/800 V avalanche rugged CoolMOS™ Novel Quasi-Resonant operation and proprietary implementation for low EMI Enhanced Active Burst Mode with selectable entry and exit standby power Active Burst Mode to reach the lowest standby power <100 mW Fast startup achieved with cascode configuration Digital frequency reduction for better overall system effici.

ICE5QR4770AG Features

* Integrated 700 V/800 V avalanche rugged CoolMOS™

* Minimum switching frequency difference between low & high line for higher efficiency & better EMI

* Enhanced Active Burst Mode with selectable entry and exit standby power

* Active Burst Mode to reach the lowest standby power

ICE5QR4770AG Datasheet (2.78 MB)
