ICE5QR4770AZ Integrated 700V / 800V avalanche rugged CoolMOS

Infineon

ICE5QR4770AZ Description

ICE5QRxxxxAx Quasi-Resonant 700 V/800 V CoolSET™ - in DIP-7 and DSO-12 Package Product Highlights * Integrated 700 V/800 V avalanche rugged Cool.

ICE5QR4770AZ Features

* Integrated 700 V/800 V avalanche rugged CoolMOS™
* Minimum switching frequency difference between low & high line for higher efficiency & better EMI
* Enhanced Active Burst Mode with selectable entry and exit standby power
* Active Burst Mode to reach the lowest standby power

📥 Download Datasheet

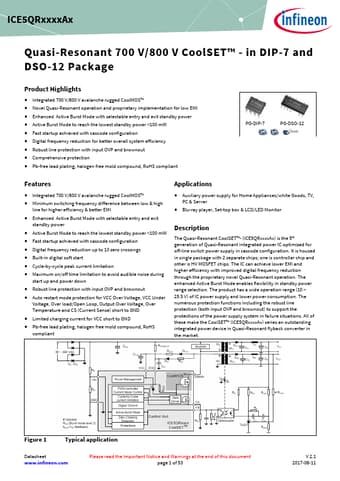

ICE5QR4770AZ Datasheet Preview — Preview of ICE5QR4770AZ PDF

Datasheet Details

Part number: ICE5QR4770AZ
Manufacturer: Infineon ↗
File Size: 2.78 MB
Datasheet: ICE5QR4770AZ-Infineon.pdf
Description: Integrated 700V / 800V avalanche rugged CoolMOS
