IPB180P04P4-03 - Power-Transistor

Infineon

📥 Download Datasheet

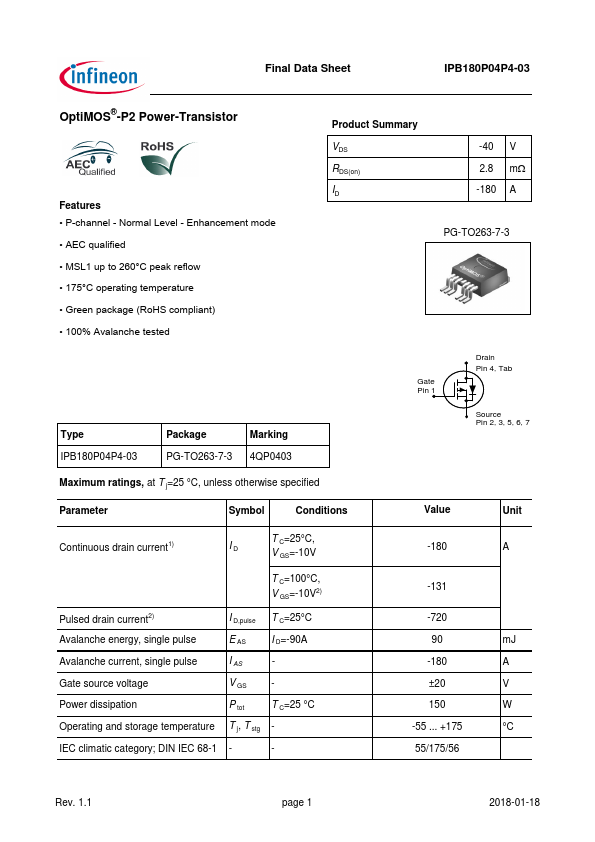

IPB180P04P4-03 Datasheet Preview — Preview of IPB180P04P4-03 PDF

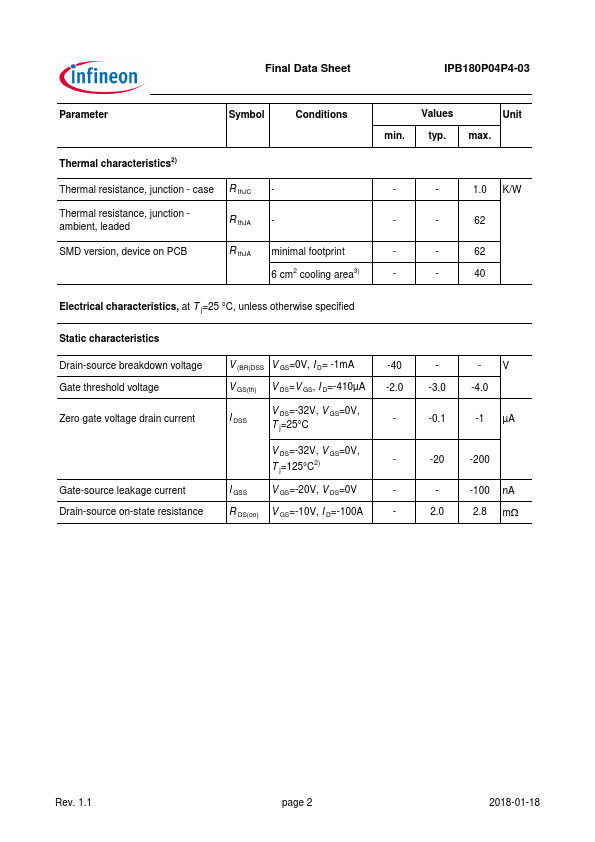

datasheet Preview Page 2

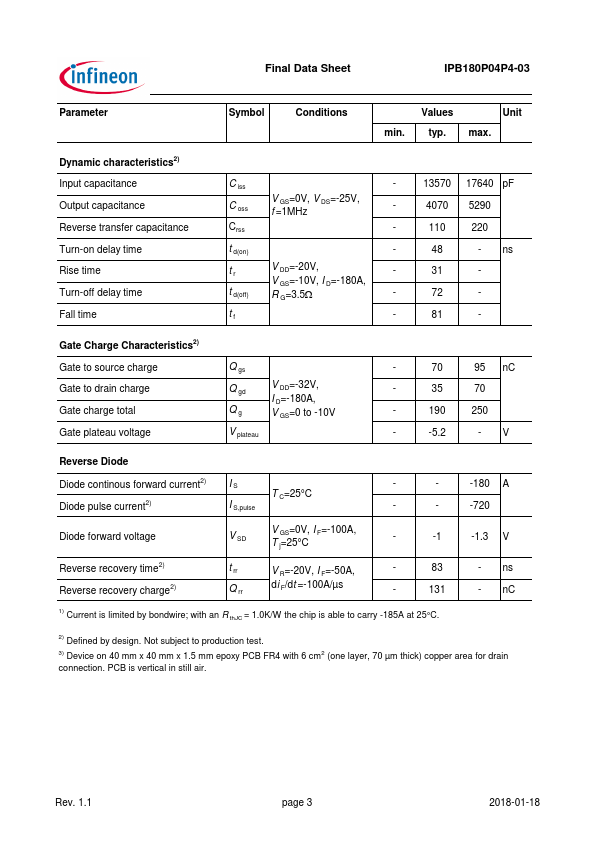

datasheet Preview Page 3

Datasheet Details

Part number	IPB180P04P4-03
Manufacturer	Infineon ↗
File Size	313.55 KB
Description	Power-Transistor
Datasheet	IPB180P04P4-03-Infineon.pdf

IPB180P04P4-03 Product details

Features

P-channel - Normal Level - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (RoHS compliant).
100% Avalanche tested Product Summary VDS RDS(on) ID -40 V 2.8 mW -180 A PG-TO263-7-3 Type IPB180P04P4-03 Package PG-TO263-7-3 Marking 4QP0403 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Gate Pin 1 Drain Pin 4, Tab Source Pin 2, 3, 5, 6, 7.
