IPB180P04P4L-02 - Power-Transistor

Infineon

📥 Download Datasheet

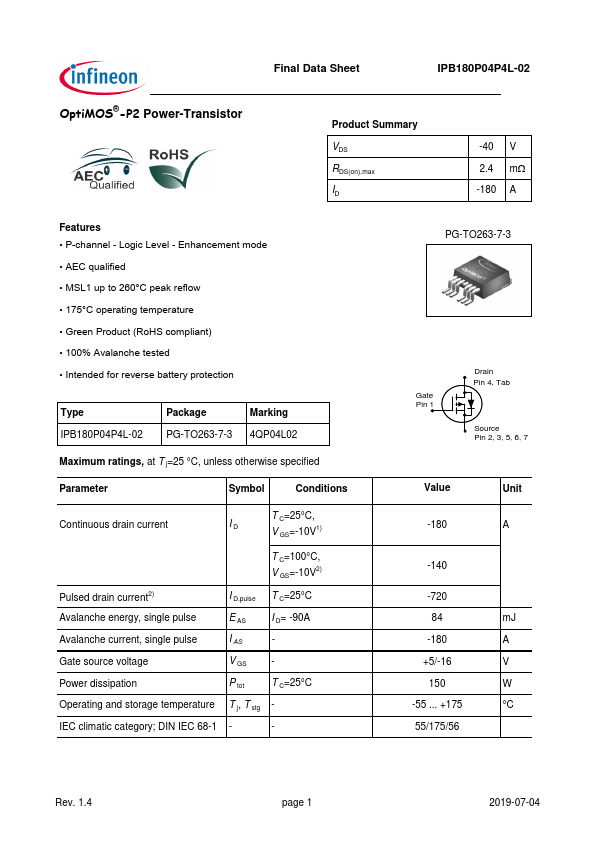

IPB180P04P4L-02 Datasheet Preview — Preview of IPB180P04P4L-02 PDF

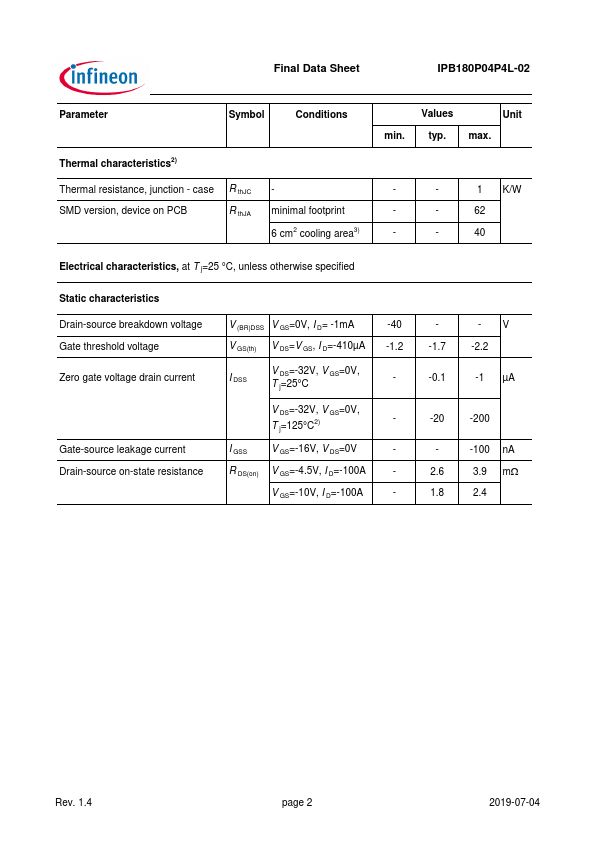

datasheet Preview Page 2

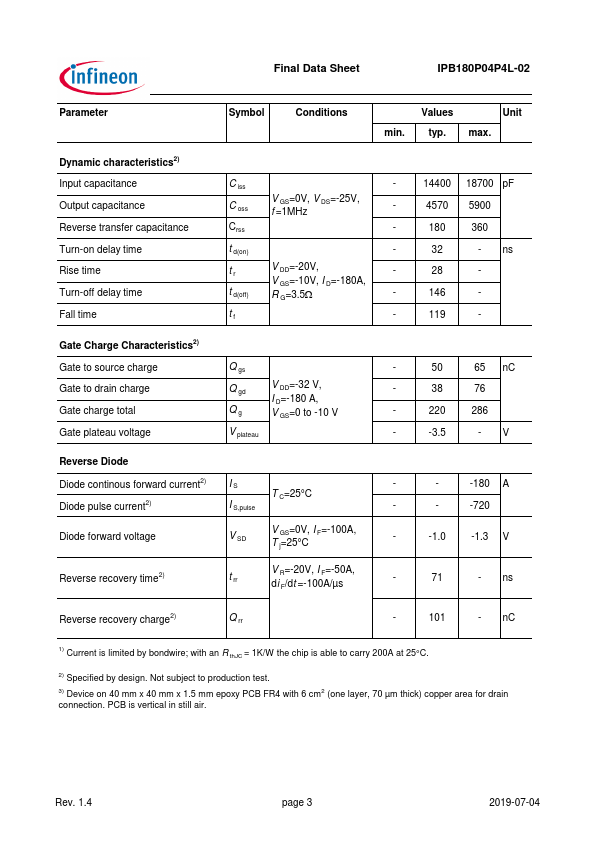

datasheet Preview Page 3

Datasheet Details

Part number	IPB180P04P4L-02
Manufacturer	Infineon ↗
File Size	459.53 KB
Description	Power-Transistor
Datasheet	IPB180P04P4L-02-Infineon.pdf

IPB180P04P4L-02 Product details

Features

P-channel - Logic Level - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested.
Intended for reverse battery protection Type IPB180P04P4L-02 Package PG-TO263-7-3 Marking 4QP04L02 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Continuous drain current ID T C=25°C, V GS=-10V1) T C=100°C, V GS=-.
