IPI040N06N3, IPI040N06N3G - Power Transistor

IPI040N06N3 Description

Type OptiMOS™3 Power-Transistor .

IPI040N06N3 Features

* for sync. rectification, drives and dc/dc SMPS
* Excellent gate charge x R DS(on) product (FOM)
* Very low on-resistance R DS(on)
* N-channel, normal level
* Avalanche rated

IPI040N06N3 Applications

* Pb-free plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Type IPB037N06N3 G IPI040N06N3 G IPB037N06N3 G IPI040N06N3 G Product Summary IPP040N06N3 G V DS R DS(on),max (SMD) ID 60 V 3.7 mΩ 90 A previous engineering sample codes: IPP04xN06N IPI04xN06N IPB04x

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IPI040N06N3, IPI040N06N3G. Please refer to the document for exact specifications by model.

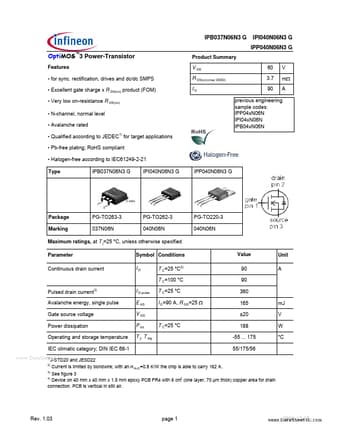

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IPI040N06N3, IPI040N06N3G
Manufacturer
Infineon ↗
File Size
509.99 KB
Datasheet
IPI040N06N3G_InfineonTechnologiesAG.pdf
Description
Power Transistor
Note
This datasheet PDF includes multiple part numbers: IPI040N06N3, IPI040N06N3G.
Please refer to the document for exact specifications by model.
