IPP120N04S3-02 - Power-Transistor

Infineon

📥 Download Datasheet

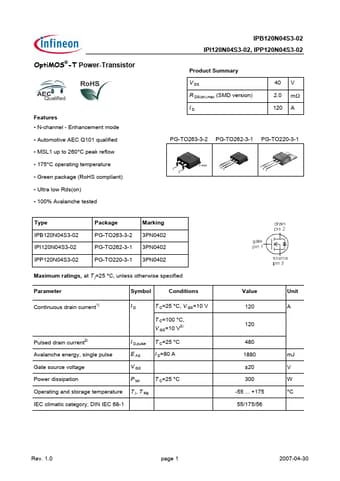

IPP120N04S3-02 Datasheet Preview — Preview of IPP120N04S3-02 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPP120N04S3-02
Manufacturer	Infineon ↗
File Size	188.41 KB
Description	Power-Transistor
Datasheet	IPP120N04S3-02-Infineon.pdf

IPP120N04S3-02 Product details

Features

N-channel - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (RoHS compliant).
Ultra low Rds(on).
100% Avalanche tested IPB120N04S3-02 IPI120N04S3-02, IPP120N04S3-02 Product Summary V DS R DS(on),max (SMD version) ID 40 V 2.0 mΩ 120 A PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB120N04S3-02 IPI120N04S3-02 IPP120N04S3-02 Package PG-TO263-3-2 PG-TO262-3-1.
