IPP120N06S4-02 - Power-Transistor

Infineon

📥 Download Datasheet

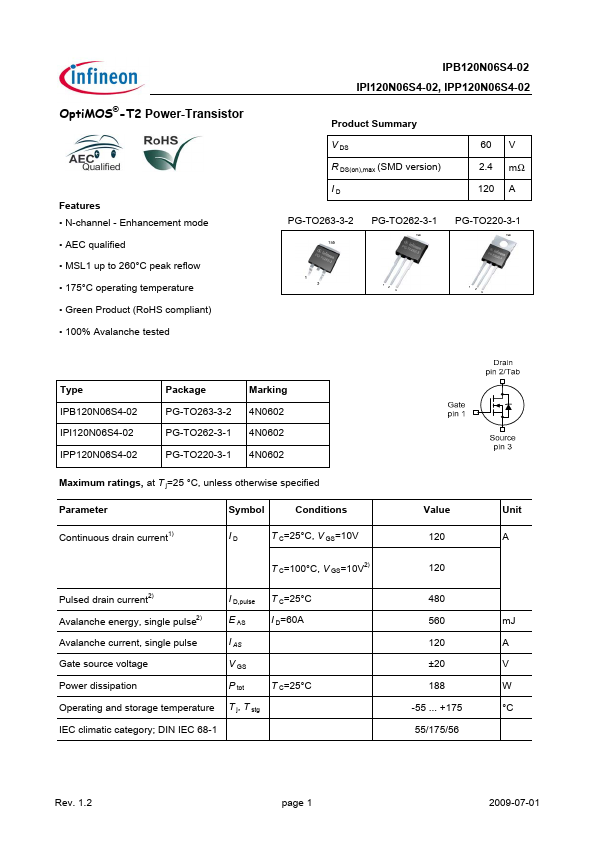

IPP120N06S4-02 Datasheet Preview — Preview of IPP120N06S4-02 PDF

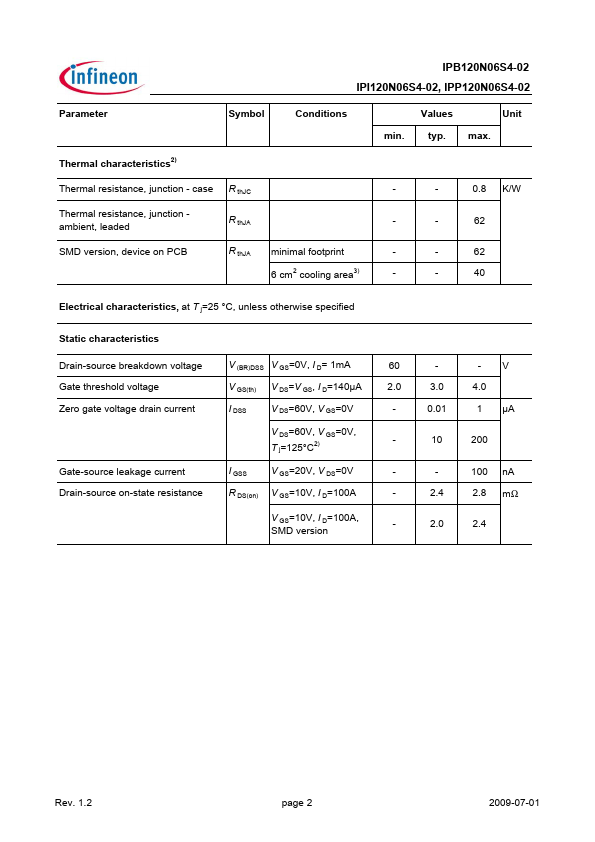

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPP120N06S4-02
Manufacturer	Infineon ↗
File Size	161.92 KB
Description	Power-Transistor
Datasheet	IPP120N06S4-02-Infineon.pdf

IPP120N06S4-02 Product details

Features

N-channel - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested IPB120N06S4-02 IPI120N06S4-02, IPP120N06S4-02 Product Summary V DS R DS(on),max (SMD version) ID 60 V 2.4 mΩ 120 A PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB120N06S4-02 IPI120N06S4-02 IPP120N06S4-02 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 4N0602 4N0602 4N0602.
