IPP120N04S4-01 - Power-Transistor

Infineon

📥 Download Datasheet

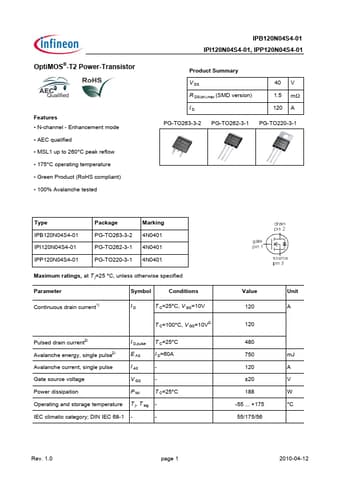

IPP120N04S4-01 Datasheet Preview — Preview of IPP120N04S4-01 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPP120N04S4-01
Manufacturer	Infineon ↗
File Size	156.13 KB
Description	Power-Transistor
Datasheet	IPP120N04S4-01-Infineon.pdf

IPP120N04S4-01 Product details

Features

N-channel - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested IPB120N04S4-01 IPI120N04S4-01, IPP120N04S4-01 Product Summary V DS R DS(on),max (SMD version) ID 40 V 1.5 mΩ 120 A PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB120N04S4-01 IPI120N04S4-01 IPP120N04S4-01 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 4N0401 4N0401 4N0401.
