ISC056N08NM6 Datasheet, Mosfet, Infineon

ISC056N08NM6 Features

  • Mosfet
  • N-channel, normal level
  • Very low on-resistance RDS(on)
  • Excellent gate charge x RDS(on) product (FOM)
  • Very low reverse recovery charge (Qrr)

PDF File Details

Part number:

ISC056N08NM6

Manufacturer:

Infineon ↗

File Size:

1.33MB

Download:

📄 Datasheet

Description:

Mosfet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

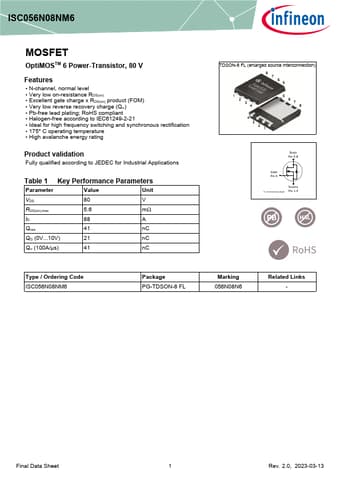

Datasheet Preview: ISC056N08NM6 📥 Download PDF (1.33MB)
Page 2 of ISC056N08NM6 Page 3 of ISC056N08NM6

ISC056N08NM6 Application

  • Applications Table 1 Key Performance Parameters Parameter Value Unit VDS 80 V RDS(on),max 5.6 mΩ ID 88 A Qoss 41 nC QG (0V10V)
