TLD1121EL Datasheet, Driver, Infineon

TLD1121EL Features

• Driver

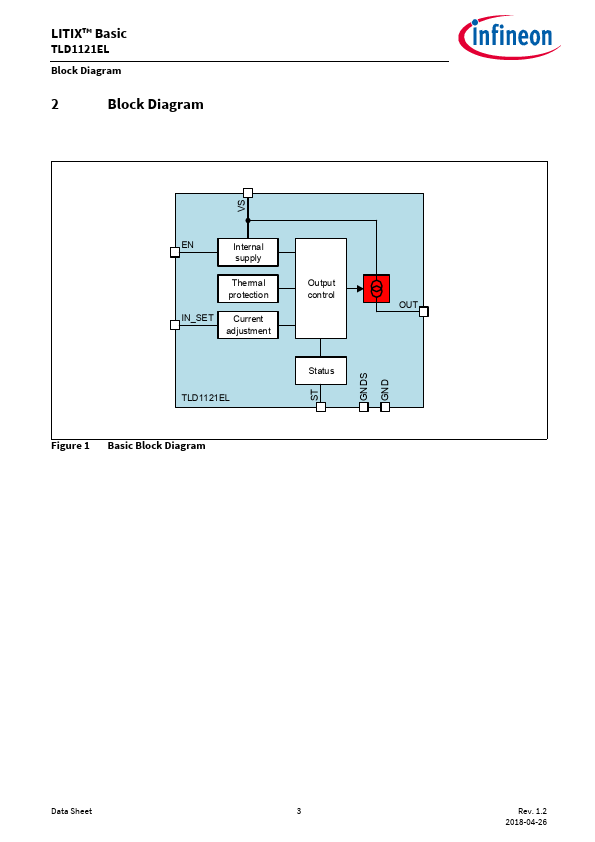

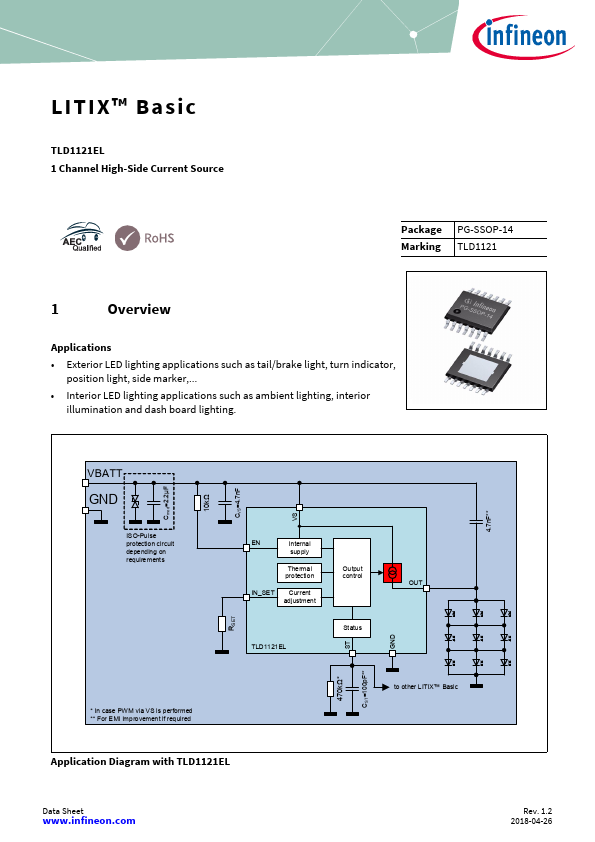

• Overview 1 Channel device with integrated output stage (current source), optimized to drive LEDs Output current up to 360mA Low curren

PDF File Details

Part number:

TLD1121EL

Manufacturer:

Infineon ↗

File Size:

1.69MB

Download:

📄 Datasheet

Description:

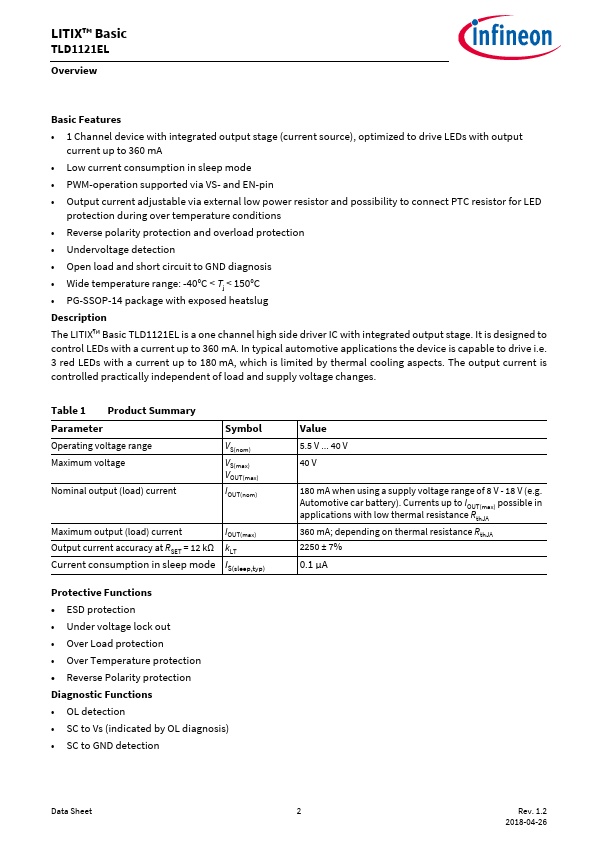

Basic led driver. The Basic LED Driver TLD1121EL is a one channel high side driver IC with integrated output stage. It is designed to control LEDs with

TLD1121EL Application

• Applications the device is capable to drive i.e. 3 red LEDs with a current up to 180 mA, which is limited by thermal cooling aspects. The output cur
