TLD1124EL Datasheet, Driver, Infineon

TLD1124EL Features

  • Driver
  • 1 Channel device with integrated output stage (current source), optimized to drive LEDs with output current up to 360 mA
  • Low current consumption
  • PWM-operat

PDF File Details

Part number:

TLD1124EL

Manufacturer:

Infineon ↗

File Size:

888.09kb

Download:

📄 Datasheet

Description:

Basic led driver. The LITIX™ Basic TLD1124EL is a one channel high side driver IC with integrated output stage. It is designed to control LEDs with a c

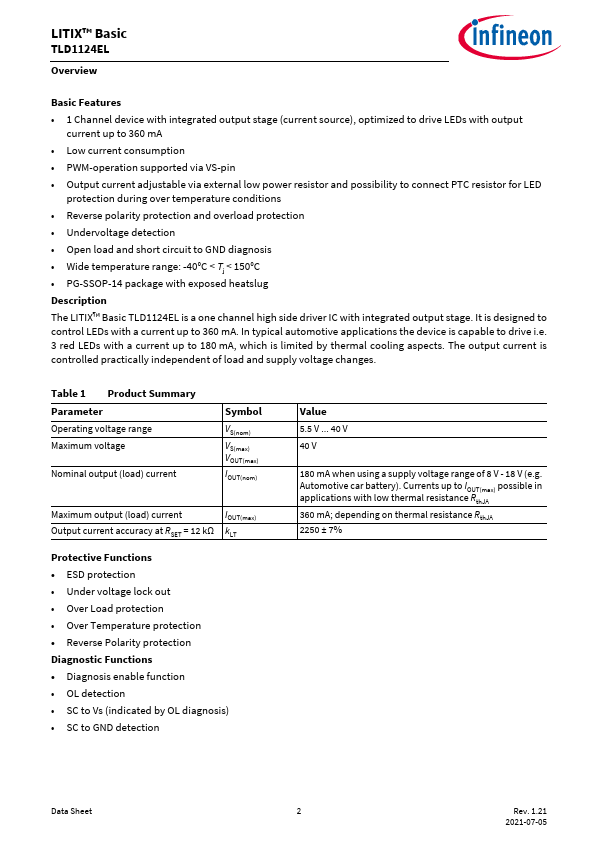

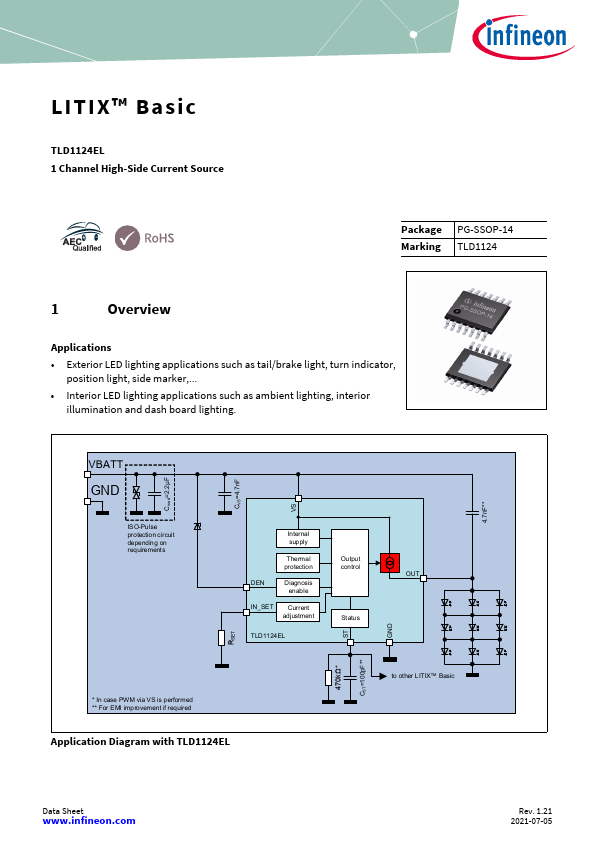

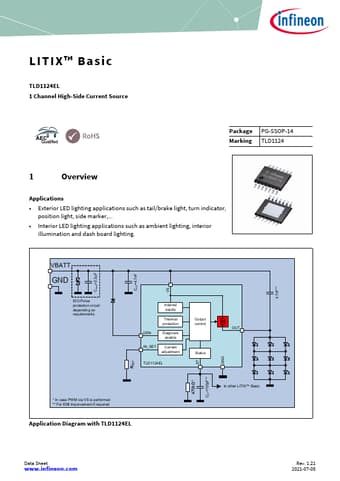

Datasheet Preview: TLD1124EL 📥 Download PDF (888.09kb)

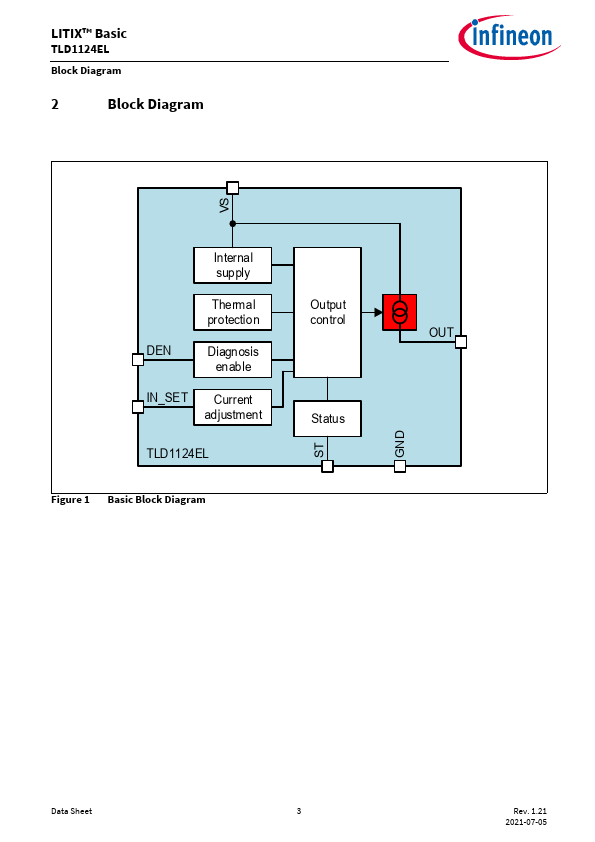

Page 2 of TLD1124EL Page 3 of TLD1124EL

TLD1124EL Application

  • Applications
  • Exterior LED lighting applications such as tail/brake light, turn indicator, position light, side marker,
  • Interior

TAGS

TLD1124EL
Basic
LED
Driver
Infineon

📁 Related Datasheet

TLD1120EL - 1 Channel High Side Current Source (Infineon)
LITIX™ Basic TLD1120EL 1 Channel High-Side Current Source Package PG-SSOP-14 Marking TLD1120 1 Overview Applications • Exterior LED lighting applicati.

TLD1121EL - Basic LED Driver (Infineon)
Infineon® Basic LED Driver TLD1121EL 1 Channel High Side Current Source Data Sheet Rev. 1.0, 2013-08-08 Automotive Free Datasheet http://.datashe.

TLD1125EL - Basic LED Driver (Infineon)
Infineon® Basic LED Driver TLD1125EL 1 Channel High Side Current Source Data Sheet Rev. 1.0, 2013-08-08 Automotive Free Datasheet http://.datashe.

TLD1211SJ - Basic LED Driver (Infineon)
Infineon LITIX™ Linear TLD1211SJ High Side Current Source 1 channel Typical 85mA load current, up to 2.5A load current using external transistors Data.

TLD1310 - 3 Channel High Side Current Source (Infineon)
LITIX™ Basic TLD1310EL 3 Channel High-Side Current Source Package PG-SSOP-14 Marking TLD1310 1 Overview Applications • Exterior LED lighting appli.

TLD1310EL - 3 Channel High Side Current Source (Infineon)
LITIX™ Basic TLD1310EL 3 Channel High-Side Current Source Package PG-SSOP-14 Marking TLD1310 1 Overview Applications • Exterior LED lighting appli.

TLD1311EL - 3 Channel High Side Current Source (Infineon)
Infineon® LITIXTM Basic TLD1311EL 3 Channel High Side Current Source Data Sheet Rev. 1.1, 2015-03-19 Automotive TLD1311EL 1 2 3 3.1 3.2 4 4.1 4.2 4..

TLD1312EL - 3 Channel High Side Current Source (Infineon)
Infineon® LITIXTM Basic TLD1312EL 3 Channel High Side Current Source Data Sheet Rev. 1.1, 2015-03-19 Automotive TLD1312EL 1 2 3 3.1 3.2 4 4.1 4.2 4..

TLD1313EL - Basic LED Driver (Infineon)
Infineon® Basic LED Driver TLD1313EL 3 Channel High Side Current Source Data Sheet Rev. 1.0, 2013-08-08 Automotive Free Datasheet http://.datashe.

TLD1314EL - Basic LED Driver (Infineon)
LITIX™ Basic TLD1314EL 3 Channel High-Side Current Source Package PG-SSOP-14 Marking TLD1314 1 Overview Applications • Exterior LED lighting appli.
