TLD1114, TLD1114-1EP - LITIX Basic+ LED Drivers

TLD1114 Description

TLD1114-1EP LITIX™ Basic+ .
The LITIX™ Basic+ TLD1114-1EP is a single channel high-side driver IC with integrated output stage.

TLD1114 Features

* Single channel device with integrated and protected output stage (current source), optimized to drive LEDs as additional low cost current source
* Easy direct control without external component from other LITIX Basic+ LED Drivers
* High output current (up to 360 mA)

TLD1114 Applications

* Cost effective “stop”/ “tail” function implementation with shared and separated LEDs per function
* Turn indicators
* Position, fog, rear lights and side markers
* Animated light functions like wiping indicators and “welcome/goodbye” functions
* Day Running

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TLD1114, TLD1114-1EP. Please refer to the document for exact specifications by model.

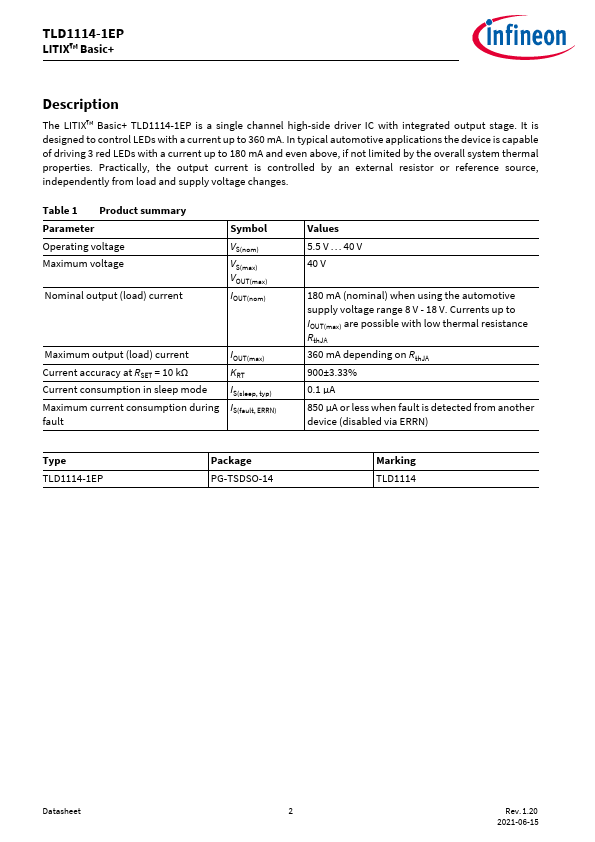

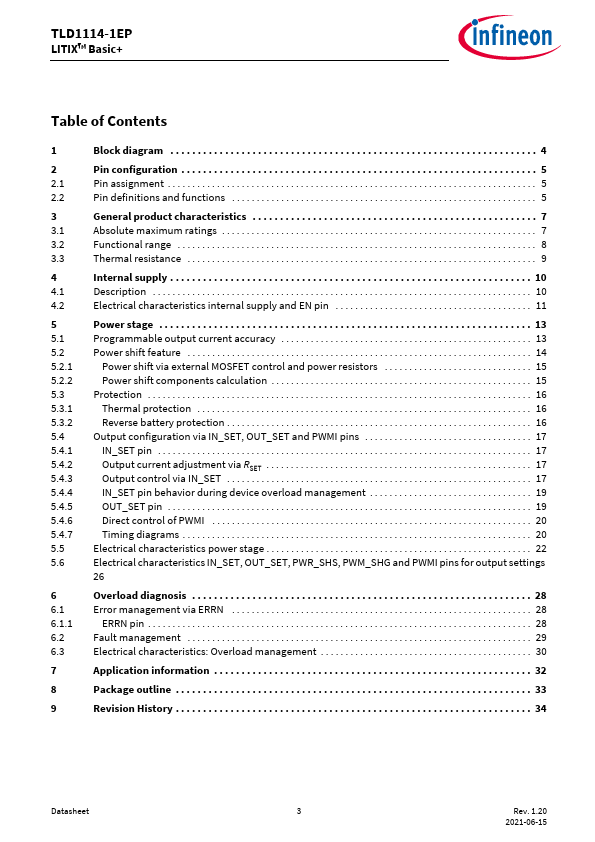

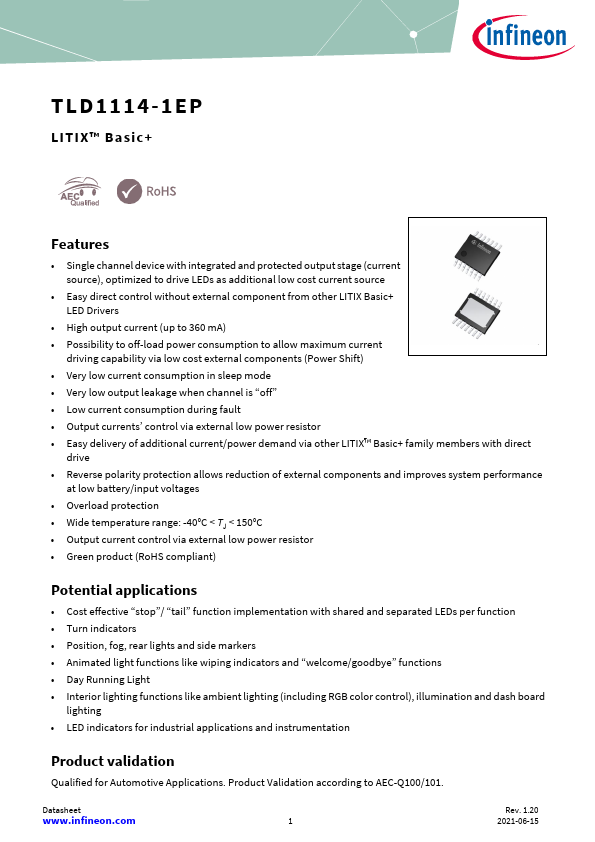

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TLD1114, TLD1114-1EP
Manufacturer
Infineon ↗
File Size
480.73 KB
Datasheet
TLD1114-1EP-Infineon.pdf
Description
LITIX Basic+ LED Drivers
Note
This datasheet PDF includes multiple part numbers: TLD1114, TLD1114-1EP.
Please refer to the document for exact specifications by model.
