TLD1114-1EP - LITIX Basic+ LED Drivers

TLD1114-1EP Description

TLD1114-1EP LITIX™ Basic+ .
The LITIX™ Basic+ TLD1114-1EP is a single channel high-side driver IC with integrated output stage.

TLD1114-1EP Features

* Single channel device with integrated and protected output stage (current source), optimized to drive LEDs as additional low cost current source
* Easy direct control without external component from other LITIX Basic+ LED Drivers
* High output current (up to 360 mA)

TLD1114-1EP Applications

* Cost effective “stop”/ “tail” function implementation with shared and separated LEDs per function
* Turn indicators
* Position, fog, rear lights and side markers
* Animated light functions like wiping indicators and “welcome/goodbye” functions
* Day Running

📥 Download Datasheet

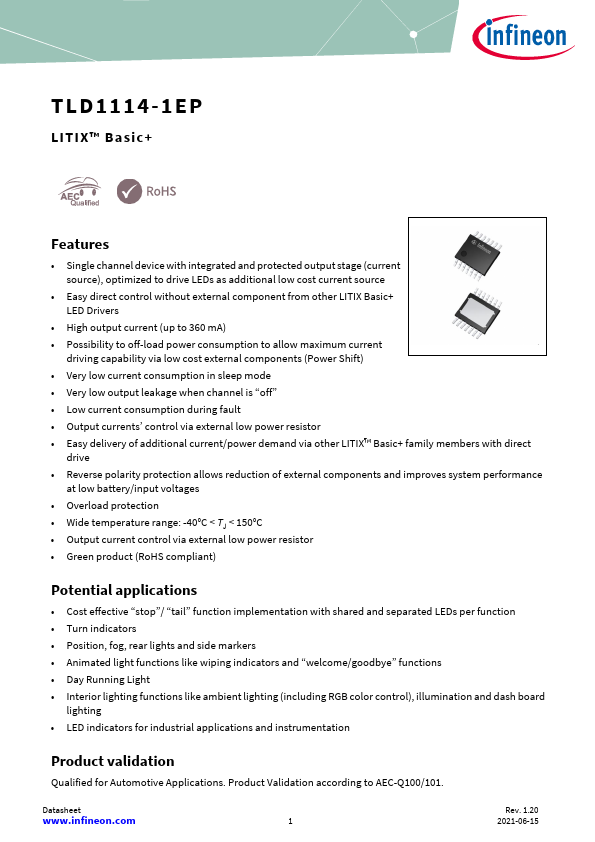

Preview of TLD1114-1EP PDF

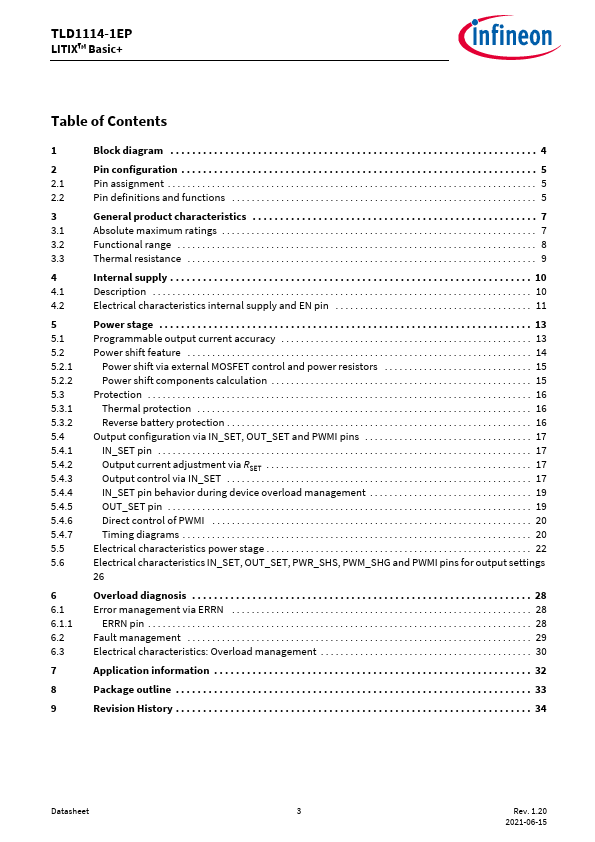

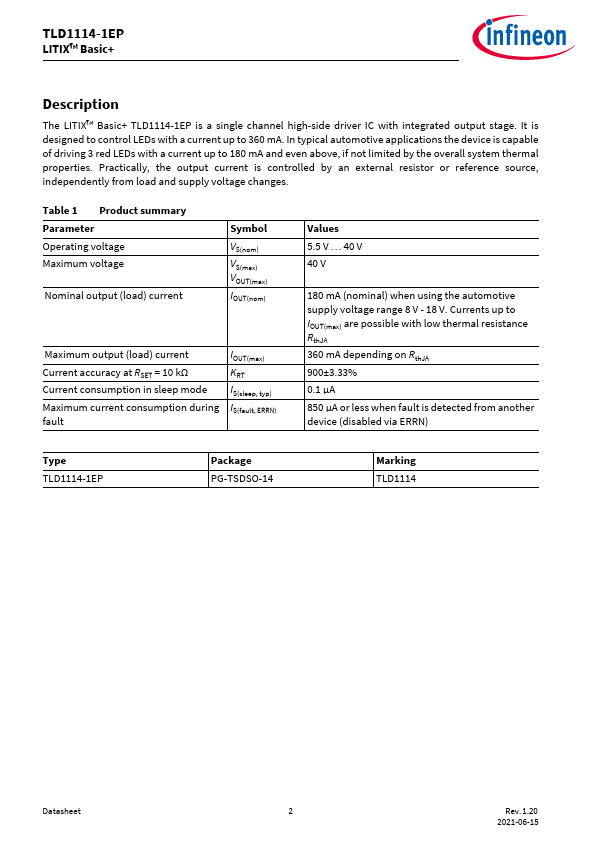

datasheet Preview Page 2 datasheet Preview Page 3
