TLD1173-1ET - a single channel low-side driver

Infineon

Datasheet Details

Part number	TLD1173-1ET
Manufacturer	Infineon ↗
File Size	631.97 KB
Description	a single channel low-side driver
Datasheet	TLD1173-1ET-Infineon.pdf

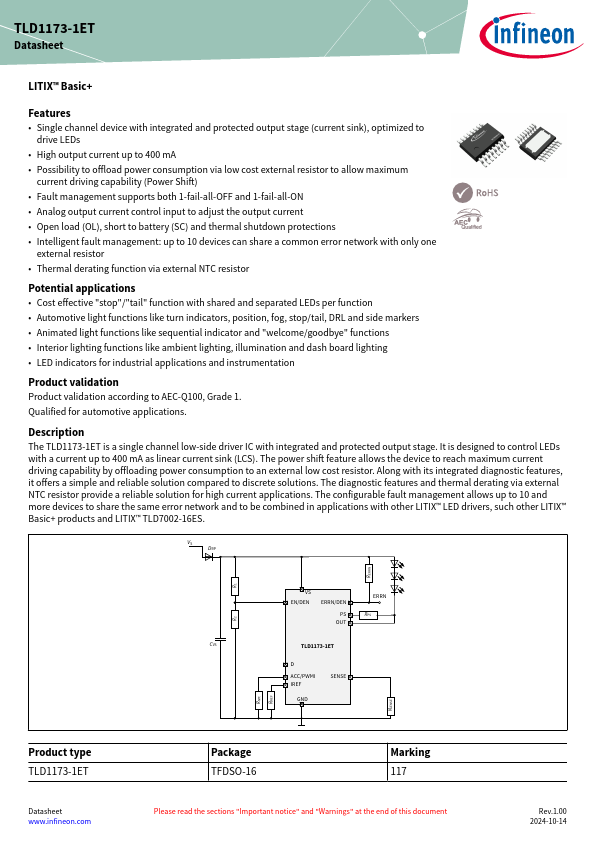

The TLD1173-1ET is a single channel low-side driver IC with integrated and protected output stage.

Single channel device with integrated and protected output stage (current sink), optimized to drive LEDs.
High output current up to 400 mA.
Possibility to offload power consumption via low cost external resistor to allow maximum current driving capability (Power Shift).
Fault management supports both 1-fail-all-OFF and 1-fail-all-ON.
Analog output current control input to adjust the output current.
Open load (OL), short to battery (SC) and t.
