TLE493D-W2B6 - Low Power 3D Hall Sensor

Infineon

📥 Download Datasheet

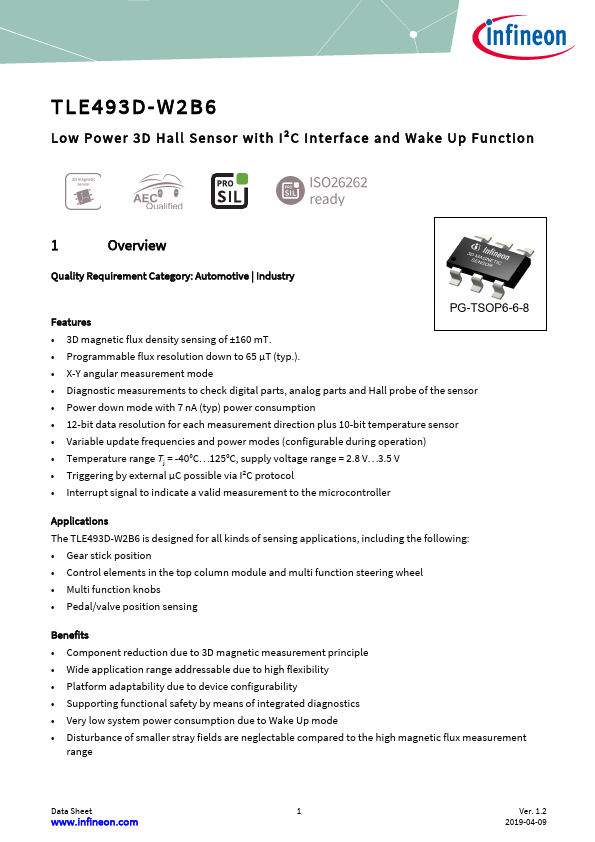

TLE493D-W2B6 Datasheet Preview — Preview of TLE493D-W2B6 PDF

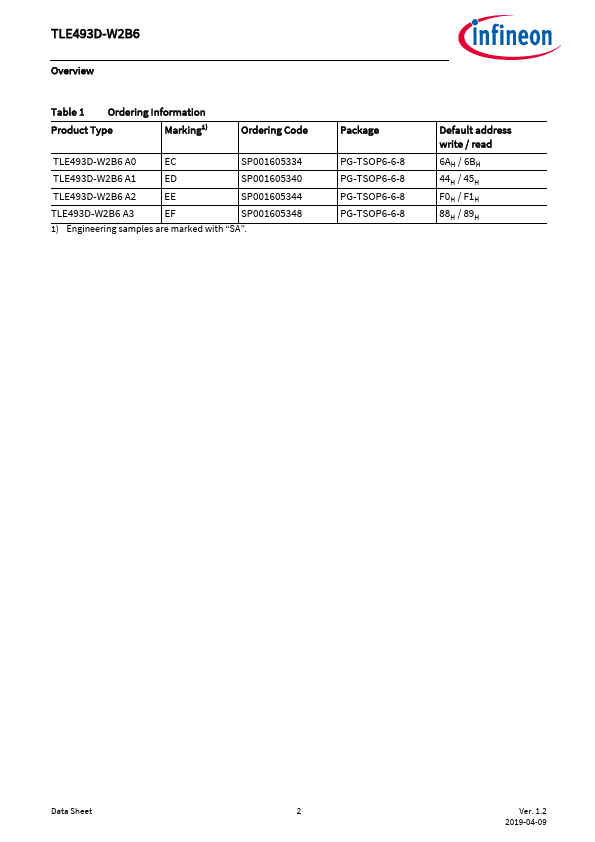

datasheet Preview Page 2

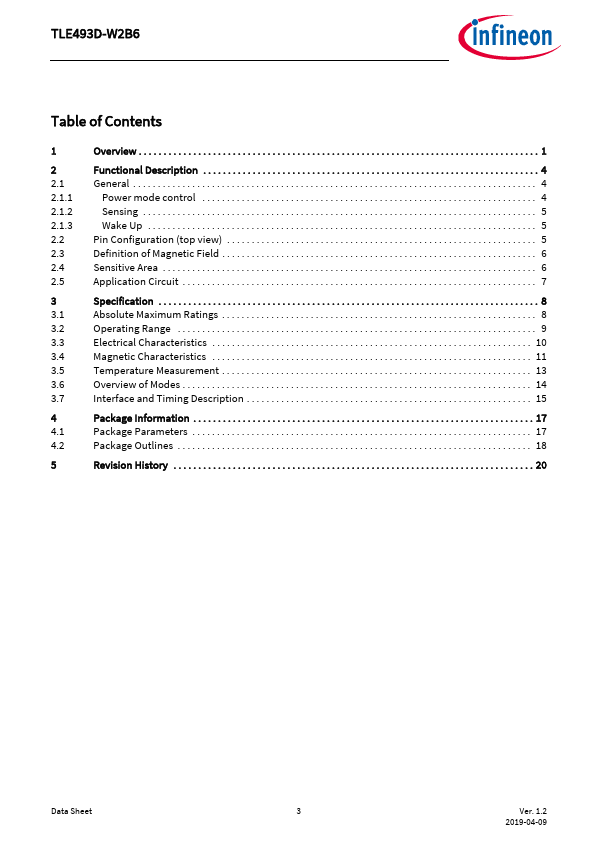

datasheet Preview Page 3

Datasheet Details

Part number: TLE493D-W2B6
Manufacturer: Infineon ↗
File Size: 528.80 KB
Datasheet: TLE493D-W2B6-Infineon.pdf
Description: Low Power 3D Hall Sensor

TLE493D-W2B6 Product details

Description

. . .

Features

PG-TSOP6-6-8.
3D magnetic flux density sensing of ±160 mT.
Programmable flux resolution down to 65 µT (typ. ).
X-Y angular measurement mode.
Diagnostic measurements to check digital parts, analog parts and Hall probe of the sensor.
Power down mode with 7 nA (typ) power consumption.
12-bit data resolution for each measurement direction plus 10-bit temperature sensor.
Variable update frequencies and power modes (configurable d.
