TLE493D-W3B6-B0 3D Hall sensor

📥 Download Datasheet Datasheet Preview Page 1

Description

TLE493D-W3B6-Bx XENSIV™ 3D Hall sensor with I²C interface and Wake Up function Datasheet .
This sensor measures the magnetic field in three orthogonal dimensions and operates as I2C bus slave.

📥 Download Datasheet

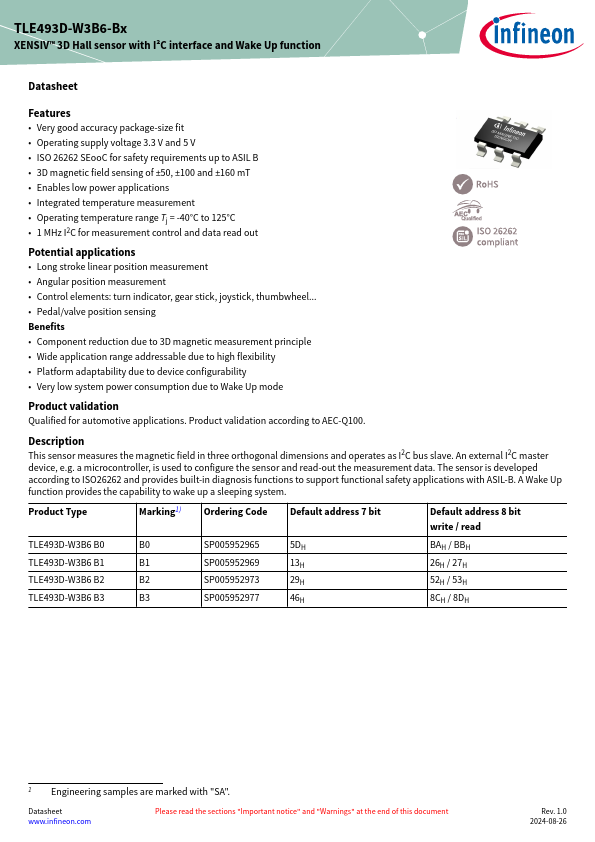

Preview of TLE493D-W3B6-B0 PDF

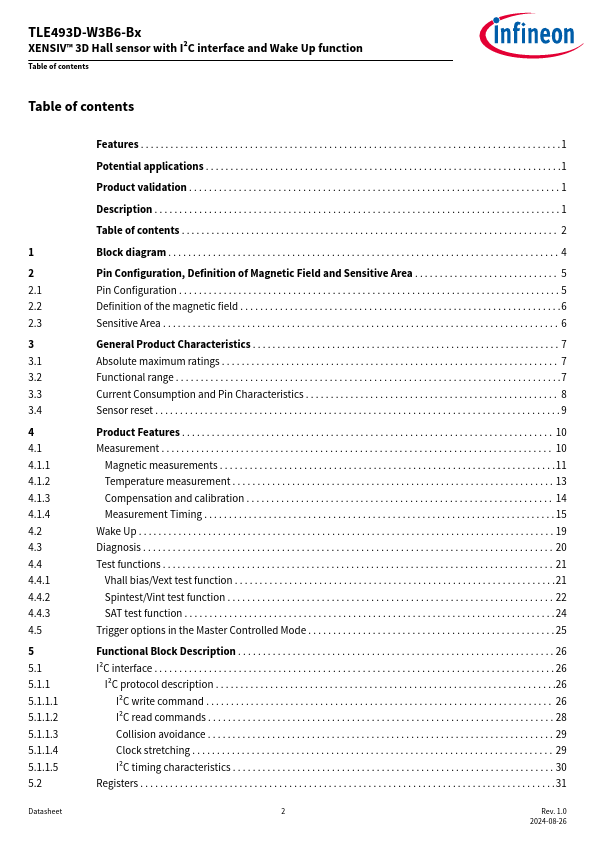

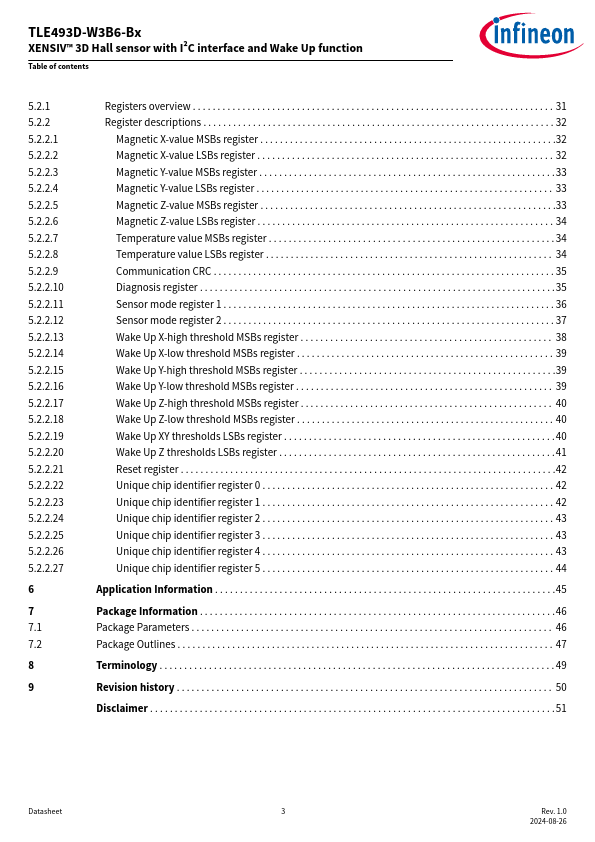

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Very good accuracy package-size fit
* Operating supply voltage 3.3 V and 5 V
* ISO 26262 SEooC for safety requirements up to ASIL B
* 3D magnetic field sensing of ±50, ±100 and ±160 mT

Applications

* Integrated temperature measurement
* Operating temperature range Tj = -40°C to 125°C
* 1 MHz I2C for measurement control and data read out Potential applications
* Long stroke linear position measurement
* Angular position measurement
* Control elem
