TLE493D-W3B6-B1, TLE493D-W3B6-B0 - 3D Hall sensor

Infineon

📥 Download Datasheet

TLE493D-W3B6-B1 Datasheet Preview — This datasheet PDF includes multiple part numbers: TLE493D-W3B6-B1, TLE493D-W3B6-B0. Please refer to the document for exact specifications by model.

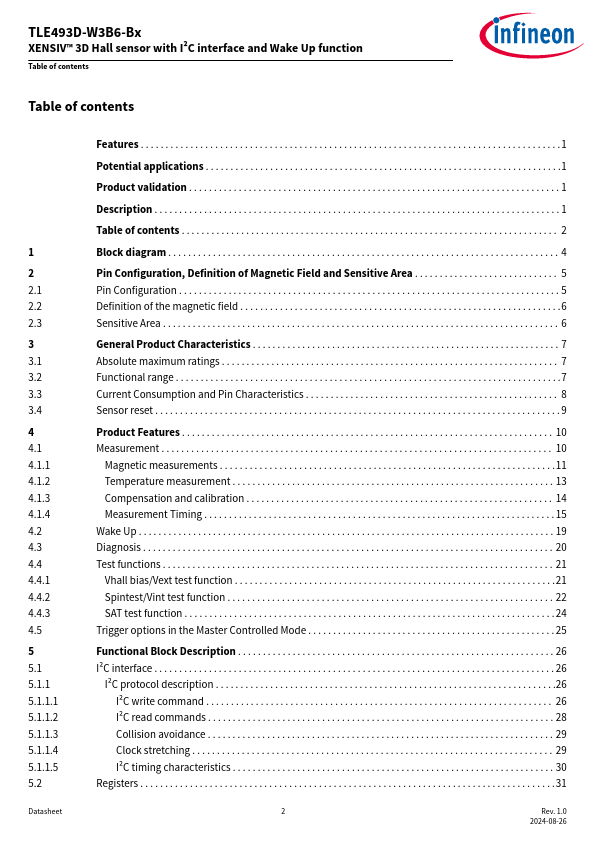

datasheet Preview Page 2

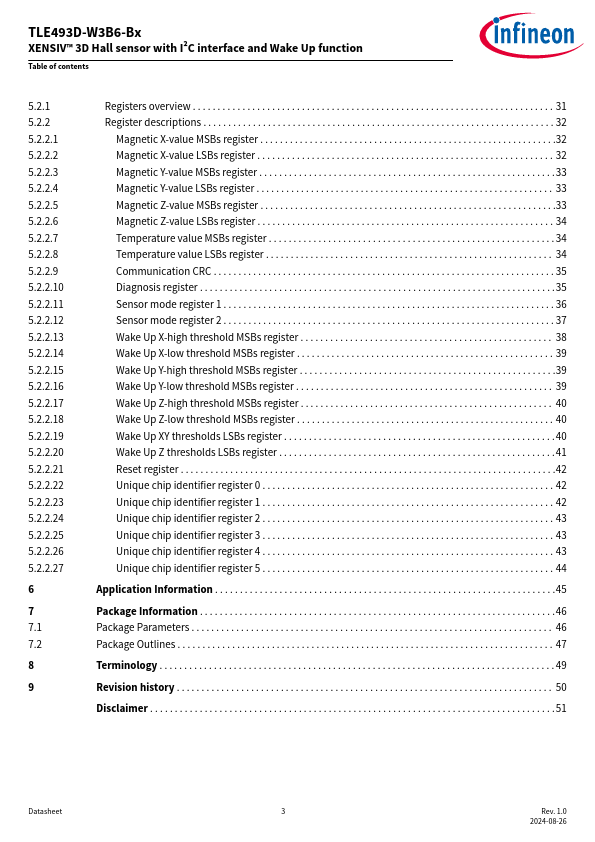

datasheet Preview Page 3

Datasheet Details

Part number: TLE493D-W3B6-B1, TLE493D-W3B6-B0
Manufacturer: Infineon ↗
File Size: 0.98 MB
Datasheet: TLE493D-W3B6-B0-Infineon.pdf
Description: 3D Hall sensor
Note: This datasheet PDF includes multiple part numbers: TLE493D-W3B6-B1, TLE493D-W3B6-B0.
Please refer to the document for exact specifications by model.

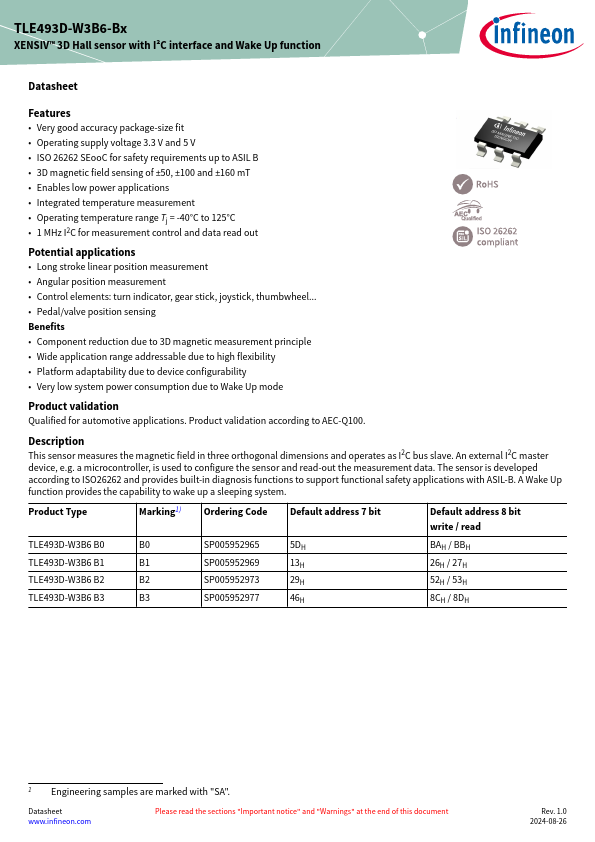

TLE493D-W3B6-B1 Product details

Description

This sensor measures the magnetic field in three orthogonal dimensions and operates as I2C bus slave.

Features

Very good accuracy package-size fit.
Operating supply voltage 3.3 V and 5 V.
ISO 26262 SEooC for safety requirements up to ASIL B.
3D magnetic field sensing of ±50, ±100 and ±160 mT.
Enables low power.
