TLE493D-W3B6-B2, TLE493D-W3B6-B0 Datasheet - Infineon

TLE493D-W3B6-B2, TLE493D-W3B6-B0, 3D Hall sensor

TLE493D-W3B6-Bx XENSIV™ 3D Hall sensor with I²C interface and Wake Up function Datasheet .
This sensor measures the magnetic field in three orthogonal dimensions and operates as I2C bus slave.

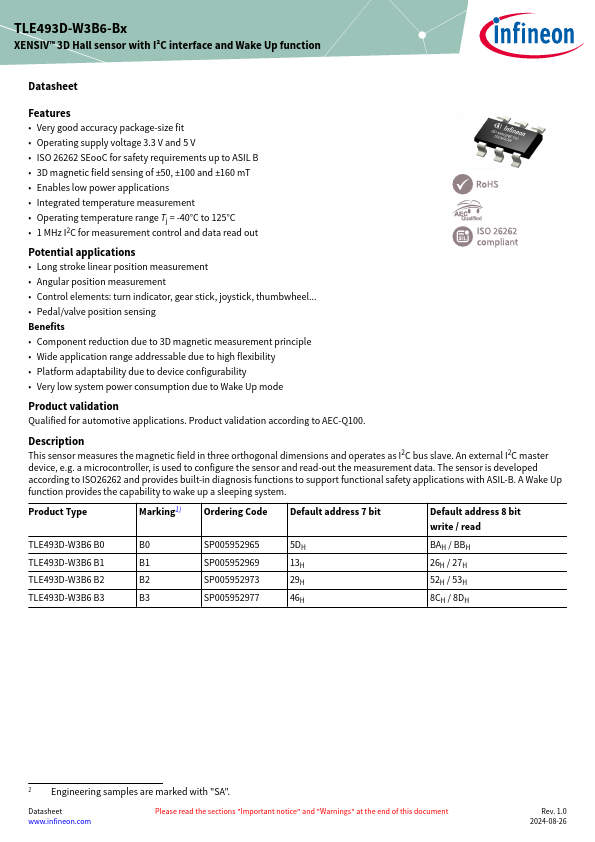

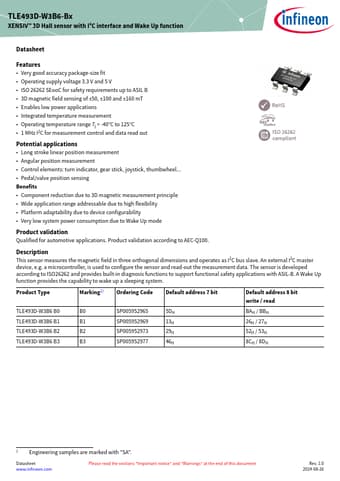

 datasheet Preview Page 1 from Datasheet4u.com

TLE493D-W3B6-B0-Infineon.pdf

This datasheet PDF includes multiple part numbers: TLE493D-W3B6-B2, TLE493D-W3B6-B0. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TLE493D-W3B6-B2, TLE493D-W3B6-B0

Manufacturer:

Infineon ↗

File Size:

0.98 MB

Description:

3D Hall sensor

Note:

This datasheet PDF includes multiple part numbers: TLE493D-W3B6-B2, TLE493D-W3B6-B0.
Please refer to the document for exact specifications by model.

Features

* Very good accuracy package-size fit
* Operating supply voltage 3.3 V and 5 V
* ISO 26262 SEooC for safety requirements up to ASIL B
* 3D magnetic field sensing of ±50, ±100 and ±160 mT

Applications

* Integrated temperature measurement
* Operating temperature range Tj = -40°C to 125°C
* 1 MHz I2C for measurement control and data read out Potential applications
* Long stroke linear position measurement
* Angular position measurement
* Control elem
